- NO.: SE-SDI3108
- Standards: CE ,FCC
- Views:

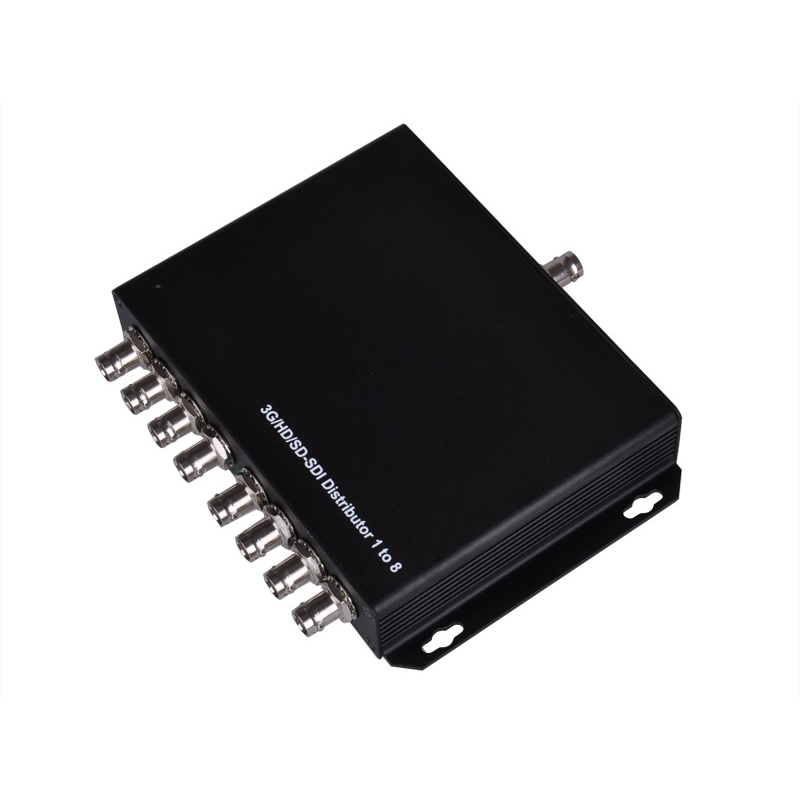

1 To 8 SD/HD/3G-SDI Distribution &lifier
ur 1in, 8out SD HD 3G-SDI Distribution Amplifier is designed to split one HD-SDI video source to 8 channel displays embedded in digital audio and simultaneously extend HD-SDI transmission distance is up to 200meter
· Support SD-SDI (270Mbps), HD-SDI (1.485Gbps),3G-SDI (2.97Gbps)
· Full HD video format
· Built-in Cable Equalizer, Re-clocker & Cable Driver
· Max. distance (Belden 1694A): SD-SDI 400m/1300ft, HD-SDI 200m/600ft ,3G-SDI 150M/500ft
· Excellent SDI signal jitter suppression function
· LED indicator :Power supply and Data
· Embedded ESD to protect the circuit
· Power supply : DC 12v,1A
· Full HD video format
· Built-in Cable Equalizer, Re-clocker & Cable Driver
· Max. distance (Belden 1694A): SD-SDI 400m/1300ft, HD-SDI 200m/600ft ,3G-SDI 150M/500ft
· Excellent SDI signal jitter suppression function
· LED indicator :Power supply and Data
· Embedded ESD to protect the circuit
· Power supply : DC 12v,1A
| Model | 1 to 8 SD/HD/3G-SDI Distribution Amplifier |
| Input Interface | 1x BNC (SDI) |
| Output Interface | 8x BNC (SDI) |
| Data Rate |
SD-SDI(270Mbps),HD-SDI (1.485Gbps) ,3G-SDI (2.97Gbps) |
| SDI Signal Format |
SD-SDI: 480i, 576i HD-SDI: 720p24/25/30/50/59.94/60 1080i 50/59.94/60 1080p24/25/29.98/30 3G-SDI: 1080p 50/59.94/60 |
| Standard |
SMPTE 292M and SMPTE 259M,SMPTE 424M ITU-R BT.601，ITU-R BT.1120 |
| SDI Signal Range | 0.8V p-p |
| SDI Impedance | 75 ohms |
| Max Distance |
Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ; 3G-SDI 150M/500ft |
| Power Supply | DC 12V, 1A / Locking Power Connector |
| Power Consumption | 10 Watts (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~140°F |
| Relative Humidity | 20~90% RH (Non-condensation) |
| Dimension | 120 x 57 x 36 mm / 4.72 x 2.24 x 1.42 inches |
*Specifications are subject to change without notice
Components Made in USA for this product:| Name of Component | Manufacturer |
| Multi-Rate SDI Adaptive Cable Equalizer | Gennum |
| Multi-Rate SDI Automatic Reclocker | Gennum |
| Multi-Rate Dual Slew-Rate Cable Driver | Mindspeed & Gennum |
| SDI SPD | Bourns |
| HDMI ESD Protection | Semtech |
| Micro Controller Unit | Texas Instruments |
