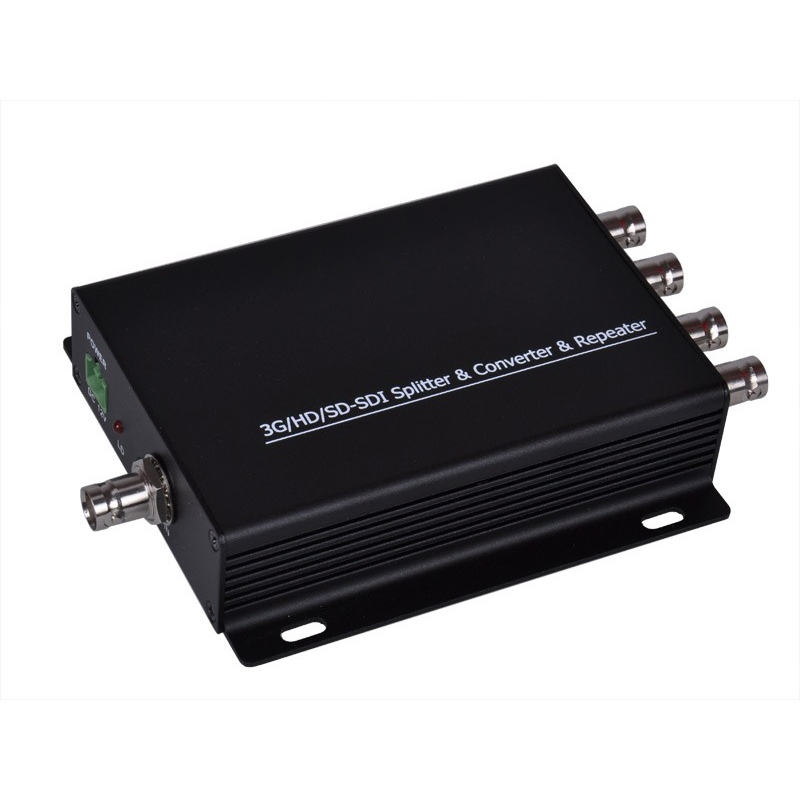

1in,4out SD/HD/3G-SDI distribution amplifier
Our 1 in，4 out SD HD 3G -SDI Repeaters with Re-clocking,cable equalizer,cable driver function It is one high performance device and apply to broadcast main chipset So it could satisfy with high requirement users
HD-SDI video format: SD-SDI , HD--SDI 3G-SDI
- Data Rates: 270Mbps/1.485 Gbps /2.97Gbps
- Signal Type: SMPTE 292M, SMPTE 259M
- Extend distance :
- SD-SDI : 350Meter
- HD-SDI : 200Meter
- 3G-SDI :140Meter
- Cable equalization retiming and signal
- Resolution :
- SD-SDI : 480I ,576I
- HD-SDI : 720P @50/59.94/60
- 1080p @23.98/24/25/29.97/30
- 1080i @50/59.94/60
- 3G-SDI : 50/59.94/60
- Re-clocking function capability – unlimited repeater connection
- LED indicator : PWR,ACT
- DC12V ,1A
| Model | 1 to 4 SD/HD/3G-SDI Distribution Amplifier |
| Input Interface | 1x BNC (SDI) |
| Output Interface | 4x BNC (SDI) |
| Data Rate |
SD-SDI(270Mbps),HD-SDI (1.485Gbps) ,3G-SDI 2.97Gbps |
| SDI Signal Format |
SD-SDI: 480i, 576i HD-SDI: 720p50/59.94/60 1080p23/23.98/24/25/29.97/30 1080i50/59.94/60 3G-SDI : 50/59.94/60 |
| Standard |
SMPTE424M ,SMPTE 292M and SMPTE 259M ITU-R BT.601，ITU-R BT.1120 |
| SDI Signal Range | 0.8V p-p |
| SDI Impedance | 75 ohms |
| Max Distance |
Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ; |
| Power Supply | DC 12V, 1A / Locking Power Connector |
| Power Consumption | 10 Watts (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~140°F |
| Relative Humidity | 20~90% RH (Non-condensation) |
| Dimension | 120 x 57 x 36 mm |
