- NO.: SE-SDI8011
- Standards: CE,FCC
- Brand: No brand
- Views:

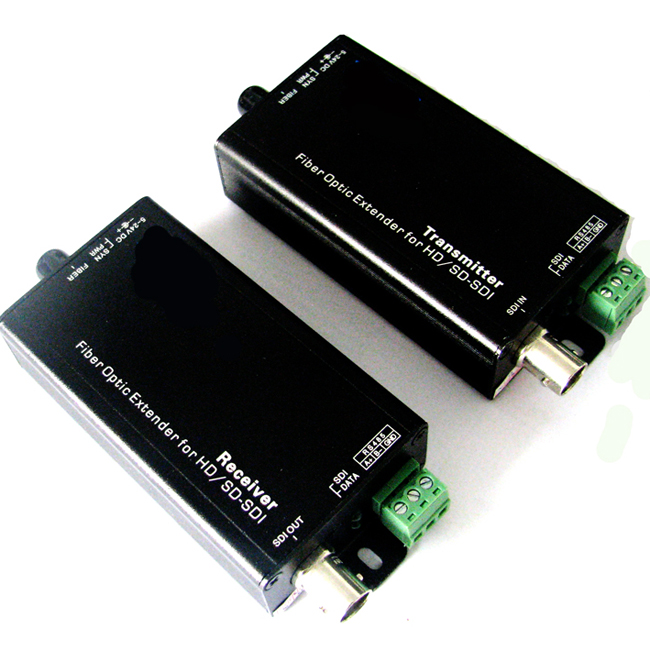

SD/HD-SDI Fiber Converter
Our SD HD 3G-SDI optical transceiver is a mini type device It is a perfect and economic extra long extende
- Support 1channel HD-SDI video and audio signal
- SD/HD-SDI input automatic detection, supported data rate from 270M bit/s to 1.485G bit/s
- Transmission distance is from 0 to 20KM via multimode fiber or single mode fiber( 40km/60km to custom )
- Support SMPTE 292M (1.485Gbps),SMPTE 259M (270Mbps),and DVB-ASI signal
- Support plug and play function
- Operation status indicated by LED
-
| Model | 1CH SD/HD-SDI fiber transceiver |
| Optical Type | Single Mode, Single Fiber (Multimode custom) Wavelength : 1310/1550nm for single mode and single fiber |
| Max. Distance | 20Km |
| Connector | FC |
| Transmitted power | -5dbm～-10dbm |
| Maximum Receiving Sensitivity | -28dBm |
| Signal Type | SD-SDI(270Mbps)/ HD-SDI(1.485Gbps) |
| Support Input Format | SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @23.98Hz/24Hz/25Hz/29Hz/30Hz |
| Video Standard | SMPTE 292M and SMPTE 259M |
| DATA comm. method | RS-485/Half duplex |
| Power Supply | 5~24DC |
| Power Consumption | 3~5 Watts |
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Relative Humidity | 20~90% RH (Non-condensation) |
| Dimension | 4.01” x 1.88” x 0.98” / 102 x 48 x 25mm |
