- NO.: SE-SDI910W
- Standards: CE,FCC
- Brand: No brand
- Views:
HD-SDI to IP H.264 encoder with wifi function
Our HD-SDI WIFI encoder is a high performance product that supports HDMI HD video H 264 encoding and wire wireless transmission which support up to 1080P25 30 HD-SDI video input The device support IEEE 802 11 b g n WIFI wireless network access, maximum WIFI speed is up to 150Mbp
It has built-in image processing engine including high performance image scaling, deinterlacing, image enhancement and self-adaptive frame conversion. After image enhancing through image processing engine, it can get low bit rates and high quality H.264 video encoding effect. (*Through practical testing, it has better video encoding quality under bitrates of 720p30@1Mbps and 1080p30@2Mbps).
Ithas H.264 High Profile code capacity of 1920x1080@30fps/1280x720@60fps (For input video higher than 1920x1080@30fps, It can reduce frames automatically).
Supports optional HDMI audio or analog Line in audio capture and encodes audio input as AAC-LC/G.711. It owns capacity of supporting dual-stream, sub stream is up to 720x480@30fps.
Video and audio encoding bit rates are adjustable and video size can be arbitrarily appointed scaling. It has encoding delay less than 70ms, “encoding to decoding” delay can be controlled within 200ms under LAN.

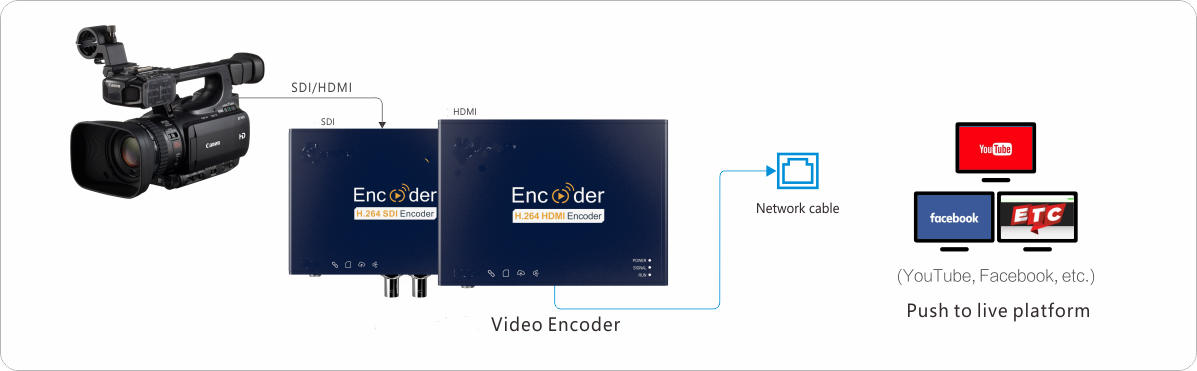

Supports transport protocols like RTP/RTSP, RTMP, TS over UDP etc, compatible with ONVIF 1.1/2.0, widely support large video websites like YouTube, UStream, Twitch/Justin.TV etc. and CDN direct access, support streaming media service access like Wowza/FMS/RED5 etc. , support automatic access with security video platform like Milestone and many famous NVR video record products.
It provides source code open SDK, support Windows/Linux/Unix cross platform and realize functions of management, media play and video through second development.
Ithas H.264 High Profile code capacity of 1920x1080@30fps/1280x720@60fps (For input video higher than 1920x1080@30fps, It can reduce frames automatically).
Supports optional HDMI audio or analog Line in audio capture and encodes audio input as AAC-LC/G.711. It owns capacity of supporting dual-stream, sub stream is up to 720x480@30fps.
Video and audio encoding bit rates are adjustable and video size can be arbitrarily appointed scaling. It has encoding delay less than 70ms, “encoding to decoding” delay can be controlled within 200ms under LAN.
Supports transport protocols like RTP/RTSP, RTMP, TS over UDP etc, compatible with ONVIF 1.1/2.0, widely support large video websites like YouTube, UStream, Twitch/Justin.TV etc. and CDN direct access, support streaming media service access like Wowza/FMS/RED5 etc. , support automatic access with security video platform like Milestone and many famous NVR video record products.
It provides source code open SDK, support Windows/Linux/Unix cross platform and realize functions of management, media play and video through second development.
- Support HD-SDI Loop back
- Built-in IEEE 802.11 b/g/n WIFI wireless network module, wireless network access up to 150Mbps, support mode switch between AP (Access Point) and STA(Station);
- 10/100Mbps self-adaptive Ethernet interface;
- HD-SDI video input up to 1080p30, automatic identification and widely compatible with various video formats；
- H.264 High Profile @ level 4.1 encoding, encoding delay less than 70ms;
- AAC-LC audio encoding and G.711 audio encoding;
- Support dual-stream (Maximum main stream is 1280x720@60fps/1920x1080@30fps, maximum sub stream D1@30fps);
- RTP/RTSP transport protocols;
- Support RTMP, UDP-TS push protocols, and can directly push to many famous video websites YouTube, UStream, Twitch/Justin.tv, Niconico, CDN video direct access and compatible with Wowza/FMS/RED5;
- Support ONVIF 1.1/2.0, widely compatible with NVR system and security video management platform;
- Encoding rate and video size are adjustable;
- Web management interface and online video preview;
- Support USB capture, provide standard DirectShow Capture interface and Audio Driver (*Need customized support);
- Provide SDK for second development.
| Interface | Video input | 1*HD-SDI |
| Video output | 1*HD-SDI loop out | |
| Video source | HD-SDI | |
| Analog audio input | 1*3.5mm | |
| Analog audio output | 1*3.5mm | |
| Network | 1*RJ-45, 10/100M self-adaptive Ethernet network | |
| WIFI | SMA | |
| USB | 1*Micro USB (USB 2.0), USB can support power | |
| Power supply | DC 5V, 2A (external adapter) | |
| Signal | HDMI | HDMI 1.4a / HDCP 1.4 |
| HDMI video formats | 1080p25/30/1080i/720p/480p/576p/480i/576i (maximum 60Hz) Compatible with VESA display resolution |
|
| Analog audio | Line in (1.5Vp-p) | |
| Encoding | Video encoding | H.264 high profile(@level 4.1) |
| Audio encoding | AAC-LC, G.711(u-Law/a-Law) | |
| Encoding delay | ≤70ms | |
| Video encoding bitrates | 512Kbps ~ 20Mbps | |
| Audio encoding bitrates | AAC encoding: 16Kbps ~ 256Kbps G.711 encoding : 64Kbps |
|
| Transmission | Transport protocols | RTP/RTSP, RTMP, HLS, MPEG-TS Push and HTTP |
| Control protocol | TCP | |
| Network management protocols | HTTP/Onvif | |
| PTZ control protocols | Pelco-D / Sony Visca (through RS485 extend adapter) | |
| Extending | Storage | USB Storage |
| Management | Management interface | Web |
| Remote management | Support | |
| Firmware upgrading | Support | |
| Working environment | Working temperature | -20℃ ~ 75℃ |
| Relative humidity | 20 ~90%RH(non-condensation) | |
| Power consumption | ≤3W |
