    HD-SDI NDI/HX H.264 Encoder

  • NO.: SE-SDI810
  • Standards: CE.FCC. ROHS
  • Brand: Netural
  • Views:

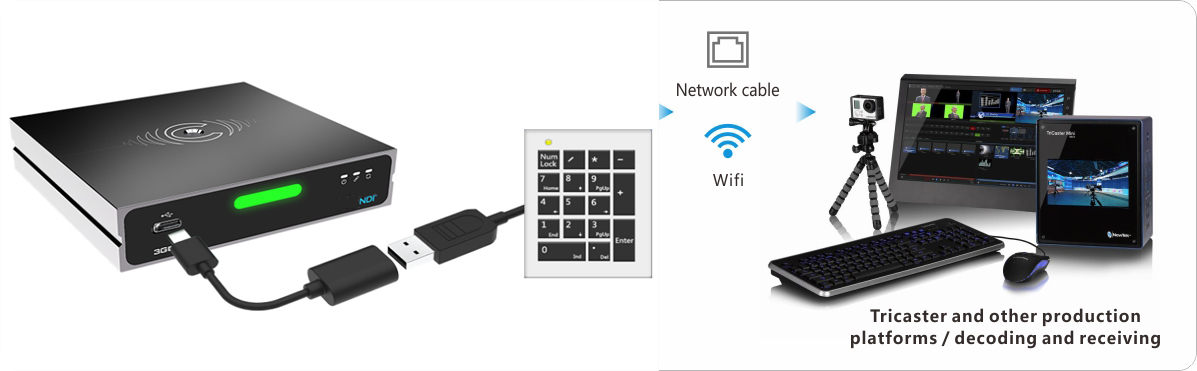

Our HD-SDI NDI HX wireless video encoder is a professional video encoding device for NDI video production It can encode SDI video source into NDI|HX2, through Ethernet or WiFi The network is used for video transmission for any compatible system, equipment or software in the network, and it also supports the SRT RTMP transmission protocol


  • Portable: Compact size with threaded screw, it can be installed on the camera when broadcasting outdoor;
  • Battery Powered: With large capacity built-in battery, it lasts more than 3 hours streaming. It’s also chargeable with V-mount battery, making continuous working possible;
  • Cooling Fan: Active heat dissipation design is as stable and reliable as running outdoors in high temperature
  • delivers SDI video source to the network in full HD, with high-efficiency NDI® output via NDI|HX2 and native support for resolutions up to 1080p.
  •  a built-in 5GHz enhanced WiFi Module which achieves more stable wireless transmission. It also supports 4G-Lte USB dongle for mobile application
  • Besides NDI|HX & NDI|HX2, supports full range protocols including RTSP, RTMP, RTMPS, RTP, SRT, HLS, TS-UDP, Onvif, live stream with RTMP/RTMPS, while live production with NDI|HX and remote production with SRT, all can be handled at the same time.

    It also supports ONVIF 1.1/2.0 for easy access to security protection system/ NVR system.


Model  SDI NDI/HX encoder

Input 1*SDI

Transmission mode Enhanced WIFI, Ethernet by USB expansion
Media protocol NDI-HX/RTSP/RTMP/SRT/HLS/TS over UDP
Video resolution Up to 1080P60Hz:
1080p23.98/24/25/29.97/30
1080p50/59.94/60
1080i50/59.94/60
720p23.98/24/25/29.97/30
720p50/59.94/60
Video encoding H264/AVC, Motion-JPEG
Audio encoding AAC/G.711
Latency Using NDI protocol for end-to-end latency by Ethernet is about 150ms
Graphic overlay Support custom text, image overlay function, and superimposed to any position on the screen
Management APP/Web
Audio Intercom Supported (KV Apps Required)
Recording SD/TF card slot, local recording, NAS network storage
Hot shoe Removable
Battery Detachable
Battery capacity 3.7V 6800mAh (29.6Wh)
Power supply DC 12V 1A
Power Consumption 6.5w
Operating temperature -20℃~45℃
Dimension 115*75*35mm (4.52”*2.95”*1.38”)
Weight 380g (13.4oz)
