- NO.: SE-HDMI2012
- Views:

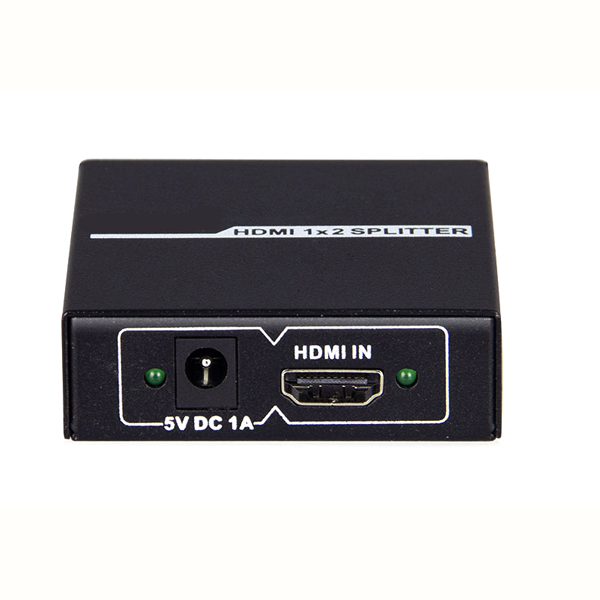

HDMI 1.3 1X2 Splitter
Our device 1x2 HDMI splitter can split single ultra HD HDMI input signal to 2ultra HD HDMI output signal without compression Support up to 4K*2K video signal, 12-bit deep color, 3D(1080P), and Dolby TrueHD DTS-HD Master audio formats
●2-channel 4K*2K full HD HDMI signal output
●Support 3D video signal (1080P)
●Support 12-bit deep color
●Support audio format LCPM 7.1, and other uncompressed audio formats, such as Dolby True HD, DTS-master, etc
●Support 2-channel EDID management, ensure maximum compatibility of video sources and display terminals
●Industrial metal case, easy to install
●UL, CCC, CE, FCC compliance
●Support 3D video signal (1080P)
●Support 12-bit deep color
●Support audio format LCPM 7.1, and other uncompressed audio formats, such as Dolby True HD, DTS-master, etc
●Support 2-channel EDID management, ensure maximum compatibility of video sources and display terminals
●Industrial metal case, easy to install
●UL, CCC, CE, FCC compliance
|
ideo bandwidth |
TMDS clock, up to 225MHz, 6.75Gbps |
|
Video resolution |
Up to 3840*2160 30Hz |
|
Audio format |
2-channel audio, include digital audio formats Dolby TrueHDand DTS Master |
|
TMDS input |
1.2 Vp-p |
|
DDC input |
5 Vp-p |
|
HDMIstandard |
|
|
EDID management |
Display terminals EDID management |
|
Indicator |
Power-green, video link-yellow |
|
Temperature range |
0 ~ 40°C (operation),-20~60°C(storage) |
|
Compliance |
UL，CCC，FCC，CE，RoHs |
|
Power consumption |
<3w<> |
|
Power input |
5V DC |
|
Dimension |
(L x W x H): 65 x 61 x 21mm |
|
Net weight |
0.15kgper unit |
