- NO.: SE-HDMI2018
- Standards: CE,FCC
- Brand: No brand
- Views:

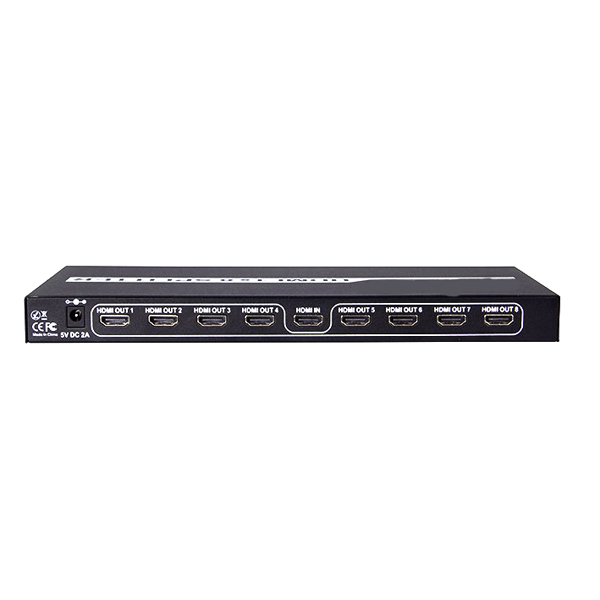

HDMI 1.3 1X8 Splitter
Our 1x8 HDMI splitter can split single ultra HD HDMI input signal to 8 ultra HD HDMI output signal withoutcompression Support up to 4K*2K video signal, 12-bit deep color,3D(1080P),and Dolby TrueHD DTS-HD Master audio formats
●8-channel 4K*2K full HD HDMI signal output.
●Support 3D video signal (1080P).
●Support 12-bit deep color.
●Support audio format-LCPM 7.1,and other uncompressed audio formats,such as Dolby True HD,DTS-master,etc.
●Support 8-channel EDID management, ensure maximum compatibility of video sources and display terminals.
●Industrial metal case, easy to install.
|
Video bandwidth |
TMDS clock, up to 225MHz, 6.75Gbps |
|
Video resolution |
Up to 3840*2160 30Hz |
|
Audio format |
8-channel audio, include digital audio formats Dolby TrueHDand DTS Master |
|
TMDS input |
1.2 Vp-p |
|
DDC input |
5 Vp-p |
|
HDMIstandard |
|
|
EDID management |
Display terminals EDID management |
|
Indicator |
Power-green, video link-yellow |
|
Temperature range |
0 ~ 40°C (operation),-20~60°C(storage) |
|
Power consumption |
<6w<> |
|
Power input |
5V DC |
|
Dimension |
(L x W x H): 277 x 136 x 25mm |
|
Net weight |
0.7kgper unit |
