- NO.: SE-HDMI3012
- Standards: CE,FCC
- Brand: No brand
- Views:

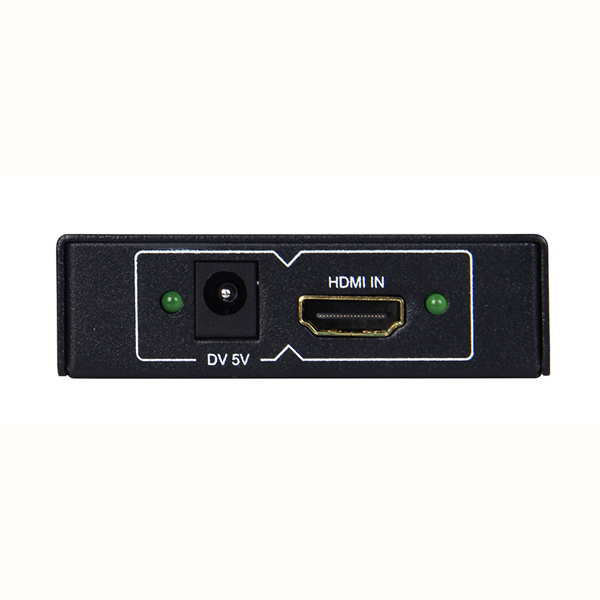

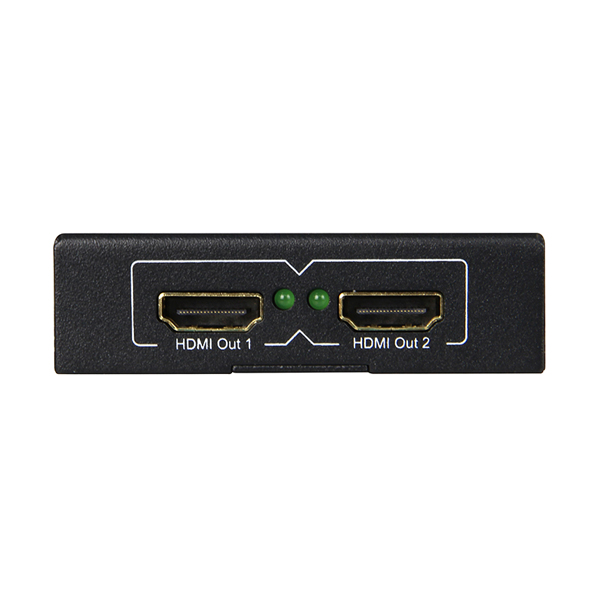

Full HDMI 1.4 1X2 Splitter
Our HDMI 1 4 1X2 splitter can split single full HD HDMI input signal to 2 full HD HDMI output signal without compression Support up to 1080P video signal, 12-bit deep color, 3D, and Dolby TrueHD DTS-HD Master audio formats
●2-channel 1080p full HD HDMI signal output.
●Support 3D video signal.
●Support 12-bit deep color.
●Support audio format-LCPM 7.1,and other uncompressed audio formats,such as Dolby True HD,DTS-master,etc.
●Support 2-channel EDID management,ensure maximum compatibility of video sources and display terminals.
●Industrial metal case,easy to install.
●Support 3D video signal.
●Support 12-bit deep color.
●Support audio format-LCPM 7.1,and other uncompressed audio formats,such as Dolby True HD,DTS-master,etc.
●Support 2-channel EDID management,ensure maximum compatibility of video sources and display terminals.
●Industrial metal case,easy to install.
|
ideo bandwidth |
TMDS clock, up to 225MHz, 6.75Gbps |
|
Video resolution |
Up to 1080p 60Hz |
|
Audio format |
1-channel audio, include digital audio formats Dolby TrueHD and DTS Master |
|
TMDS input |
1.2 Vp-p |
|
DDC input |
5 Vp-p |
|
HDMIstandard |
HDMI 1.3C, HDCP 1.2, support 3D |
|
EDID management |
Display terminals EDID management |
|
Indicator |
Power-green, video link-yellow |
|
Temperature range |
0 ~ 40°C (operation),-20~60°C(storage) |
|
Compliance |
UL，CCC，FCC，CE，RoHs |
|
ower consumption |
<6w<> |
|
Power input |
5V DC |
|
Dimension |
(L x W x H): 65 x 61 x 21mm |
|
Net weight |
0.15kgper unit |
