- NO.: SE-HDMI3014
- Standards: CE,FCC
- Brand: No brand
- Views:

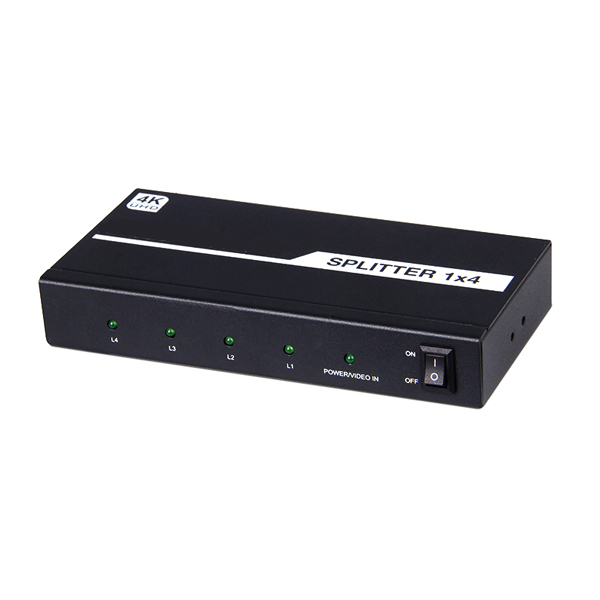

Full HDMI 1.4 1X4 Splitter
Our HDMI1 4 1x4 Splitter can split single full HD HDMI input signal to 4 full HD HDMI output signal without compression Support up to 1080P video signal, 12-bit deep color, 3D, and Dolby True HD DTS-HD Master audio formats
● 4-channel HDMI 1.4b 4K*2K ultra HD HDMI signal output up to 3.4Gbps data rate.
● Support 1080p 3D video signal.
● Support 12-bit deep color.
● Support audio format-LCPM 7.1, and other uncompressed audio formats, such as Dolby True HD, DTS-master, etc.
● Support multi-channel EDID management, ensure maximum compatibility of video sources and display terminals.
● HDCP 1.4 compatible.
● Industrial metal case, easy to install.
● Support 1080p 3D video signal.
● Support 12-bit deep color.
● Support audio format-LCPM 7.1, and other uncompressed audio formats, such as Dolby True HD, DTS-master, etc.
● Support multi-channel EDID management, ensure maximum compatibility of video sources and display terminals.
● HDCP 1.4 compatible.
● Industrial metal case, easy to install.
|
Video bandwidth |
TMDS clock, up to 340MHz, 10.2Gbps |
|
Video resolution |
Up to 4K*2K30Hz |
|
Audio format |
8-channel audio, include digital audio formats Dolby TrueHD and DTS Master |
|
TMDS input |
500mV-1.2 Vp-p |
|
DDC input |
5 Vp-p |
|
Power on initiation time |
≤6 s |
|
Input HDMI cable hot-plug recover time |
≤5 s |
|
Output HDMI cable hot-plug recover time |
≤5 s |
|
Maximum Input HDMI cable length |
≥10m @4K*2K 30ps，HDMI AWG24, HDMI 1.4 standard cable |
|
Maximum output HDMI cable length |
|
Power consumption |
<3W; |
|
Power input |
5V DC |
|
Dimension |
179X66X28mm; |
|
Net weight |
0.25 kg per unit; |
