- NO.: SE-SDI6810P
- Standards: CE,FCC
- Brand: No brand
- Views:

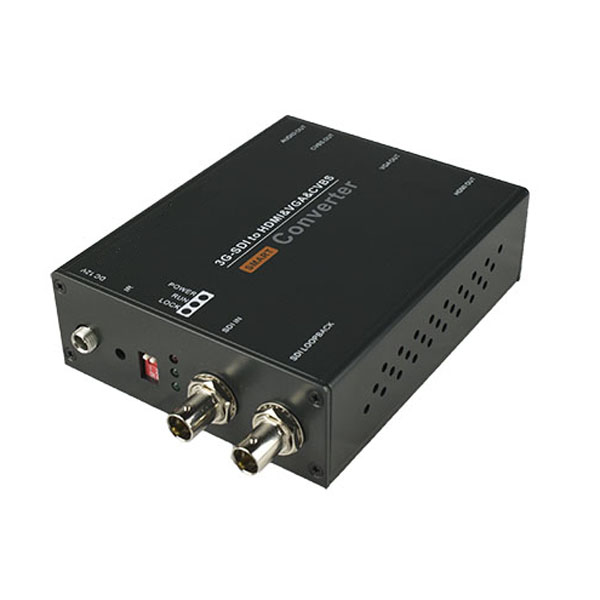

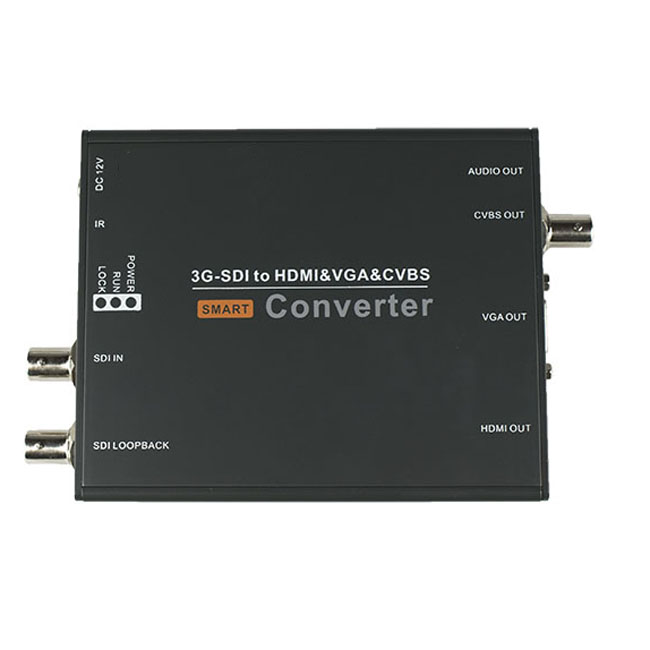

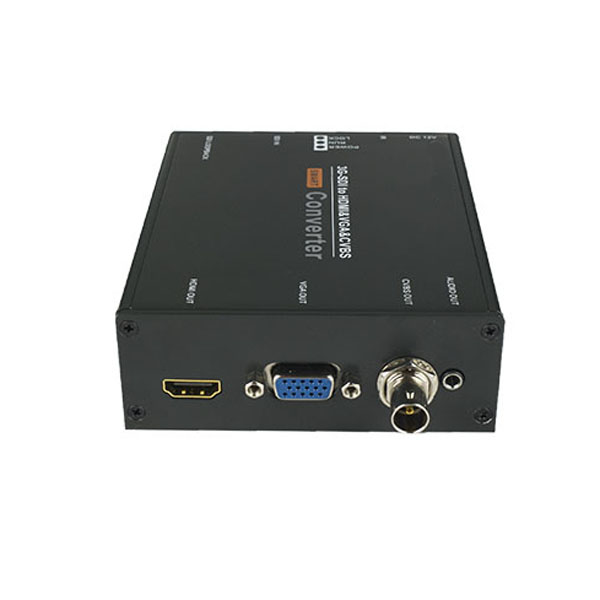

SD/HD/3G-SDI to HDMI &VGA&AV Converter

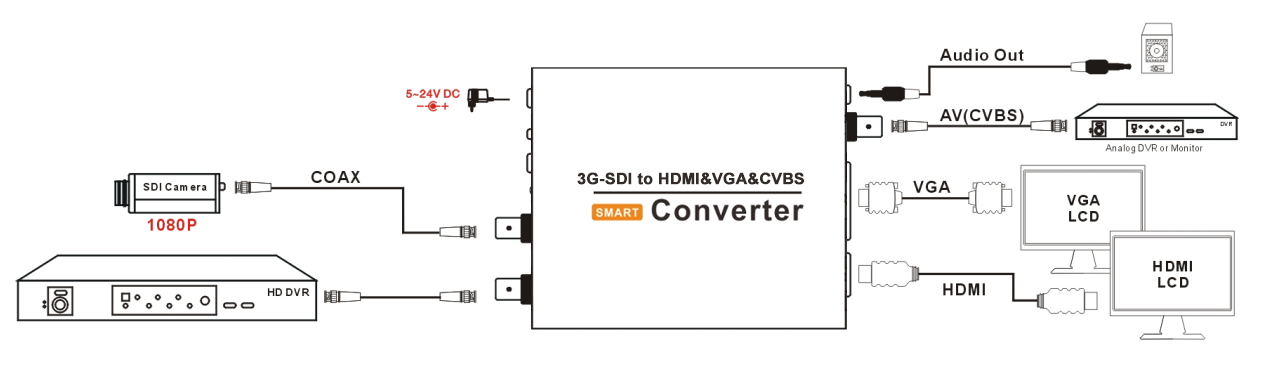

Our SD HD 3G-SDI to HDMI & VGA & AV Converter is designed to convert one channel HD-SDI video source to HDMI &VGA & AV displays simultanously It integrates SDI Cable equalizer and re-clocker and cable driver to enhance video performance and stability
- Support all type SDI resolution：
- SMPTE424M, SMPTE292M, SMPTE259M-C.
- Carry 1 channel SDI signal loop out.
- Automatically detect the HDMI EDID information adaptive HDMI best mode
- Support all formats asymmetric conversion to force any output resolution by OSD
- The signal lost blue screen warning
- VGA output support 10 main resolutions
- Automatically embed SDI audio signal to HDMI signal.
- User selectable output format (HDMI and VGA and AV)
- Intelligent adaptation of PAL / NTSC
- Support independent stereo audio output
| Model | SD/HD/3G-SDI to HDMI &VGA& AV converter |
| Input Interface | 1x BNC SDI |
| Input Signal Type |
SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI (2.97Gbps) |
| Support Input Format | SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 3G: 1080p @ 50Hz / 59.94Hz / 60Hz |
| SDI Signal Range | 0.8V p-p |
| SDI Impedance | 75 ohms |
| SDI Coupling Type | AC Coupling |
| Max. Input Coax Length | Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ; 3G-SDI 140m / 450ft |
| SDI Loop Out | 1x BNC SDI |
| HDMI/DVI Output | 1x HDMI 1。3 |
| HDMI format | 480i/p , 576i/p ,720p50/60, 1080p25/30,1080i 50/60, 1080p50/60 |
| Frequency Bandwidth | standard with HDCP :HDMI 1.3 |
| VGA Output | 1x VGA |
| VGA format | 640*480@60Hz、800*600@60Hz、1024*768@60Hz、1280*720@60Hz、1280*1024@60Hz、1360*768@60Hz、 1440*900@60hz , 1600*1200@60Hz、1680*1050@60Hz、1920*1080@60Hz |
| AV (CVBS) output | 1 x BNC –F |
| AV format | PAL and NTSC |
| Audio output | 1x3.5mm audio socket |
| Power Supply | 5V~24V DC |
| Power Consumption | 3~6 Watts |
| Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F |
| Storage Temperature | -30°C ~ 70°C / -22°F ~158°F |
| Relative Humidity | 20~90% RH (Non-condensation) |
| Dimension | 158 x 120x 36 mm / 6.22 x 4.72 x 1.42 inches |
| Weight | 300g |
Components Made in USA for this product:
| Name of Component | Manufacturer |
| Multi-Rate SDI Adaptive Cable Equalizer | Gennum |
| Multi-Rate SDI Automatic Reclocker | Gennum |
| Multi-Rate Dual Slew-Rate Cable Driver | Mindspeed & Gennum |
| SDI SPD | Bourns |
| HDMI ESD Protection | Semtech |
