- NO.: SE-SDI6325
- Standards: CE,FCC
- Brand: No brand
- Views:

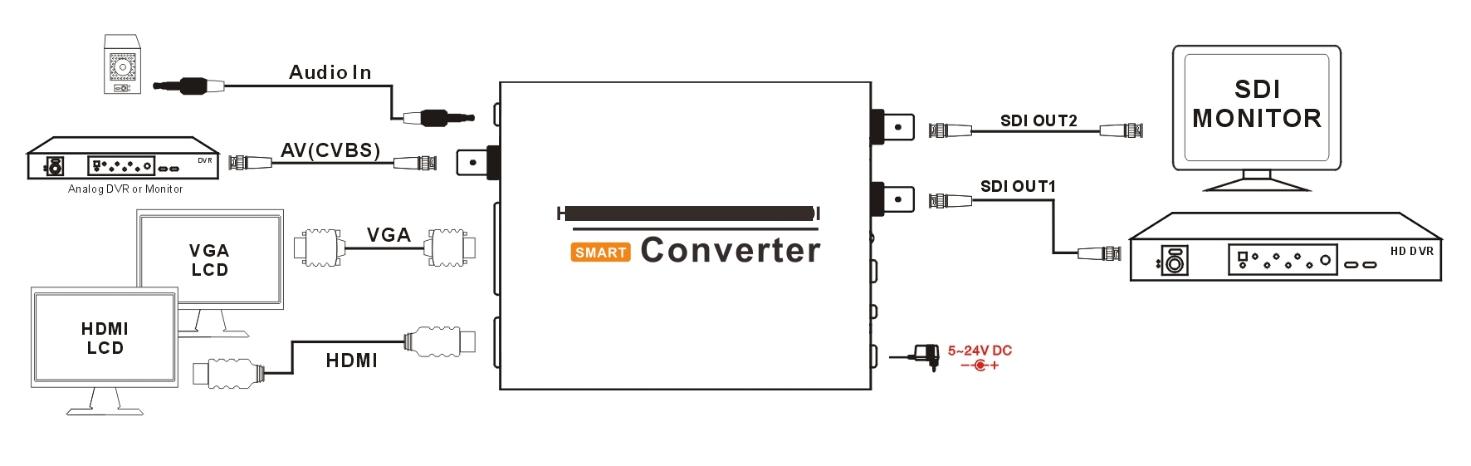

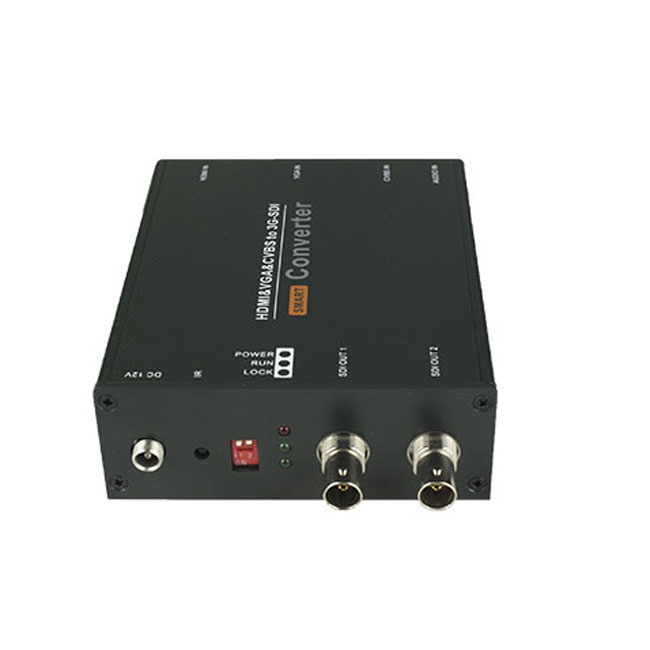

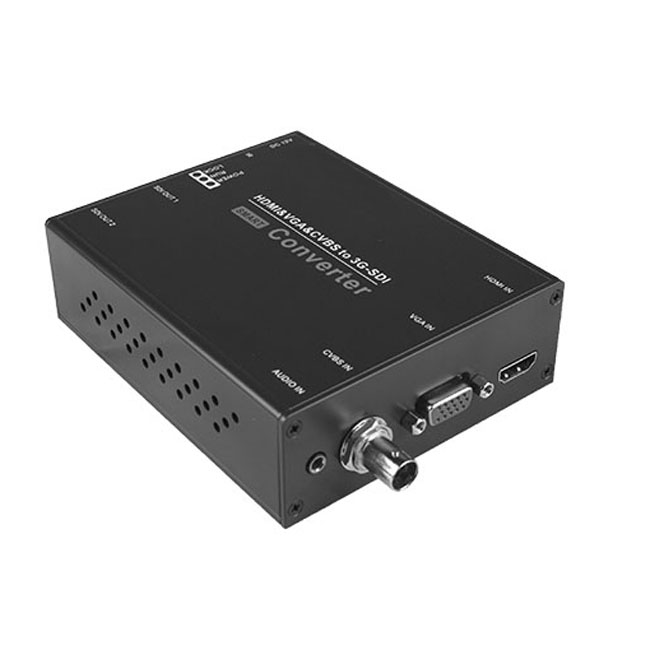

HDMI&VGA&AV to SD/HD/3G-SDI converter
ur HDMI & VGA & AV to SD HD 3G-SDI Converter is used to convert HDMI or VGA OR AV video source to SD HD 3G-SDI signal It integrates SDI Cable equalizer and re-clocker to enhance video performance and stability
- Support all type SDI resolution
- SMPTE 425M (A level and B level), SMPTE424M, SMPTE292M, SMPTE259M-C.
- Carry 2 channel SDI signal out.
- Automatically detect the HDMI DDC information adaptive HDMI best mode and HDCP1./2.0
- Support all formats asymmetric conversion to force any input resolution by OSD
- The signal lost blue screen warning
- VGA output format would support all standard VGA resolutions
- Automatically embed SDI audio signal to HDMI signal.
- User selectable one signal source as output signal (HDMI and VGA and AV)
| Model | HDMI &VGA& AV to SD/HD/3G-SDI Converter |
| HDMI Input | 1x HDMI |
| VGA Input | 1x VGA |
| AV (CVBS) Input | 1 x BNC –F |
| Audio input | 1X3.5mm audio socket |
| HDMI format | 480i/p , 576i/p ,720p50/60, 1080p25/30,1080i 50/60, 1080p50/60 |
| VGA format | All standard resolutions :640*480@60Hz、800*600@60Hz、1024*768@60Hz、1280*720@60Hz、1280*768@60Hz、1280*800@60Hz、1280*1024@60Hz, 1360*768@60Hz、 1440*900@60hz , 1600*1200@60Hz、1920*1080@60Hz、1920*1200@60Hz |
| AV Format | PAL and NTSC |
| HD-SDI Out Interface | 2x BNC SDI, 75 Ohm |
| Input Signal Type |
SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI (2.97Gbps) |
| Support Output Format/HD-SDI | SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 3G: 1080p @ 50Hz / 59.94Hz / 60Hz |
| SDI Signal Range | 0.8V p-p |
| Max. Output Coax Length | Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ; 3G-SDI 140m / 450ft |
| Frequency Bandwidth | 340 MHz/ up to standard with HDCP :HDMI 1.3 |
| Power Supply | 5V~24V DC |
| Power Consumption | 3~6 Watts |
| Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F |
| Storage Temperature | -30°C ~ 70°C / -22°F ~158°F |
| Relative Humidity | 20~90% RH (Non-condensation) |
| Dimension | 158 x 120x 36 mm / 6.22 x 4.72 x 1.42 inches |
| Weight | 300g |
Key Components
Components Made in USA for this product:
| Name of Component | Manufacturer |
| Multi-Rate SDI Adaptive Cable Equalizer | Gennum |
| Multi-Rate SDI Automatic Reclocker | Gennum |
| Multi-Rate Dual Slew-Rate Cable Driver | Mindspeed & Gennum |
| SDI SPD | Bourns |
| HDMI ESD Protection | Semtech |
