- NO.: SE-HDMI11042B
- Standards: CE,FCC,ROHS
- Brand: Netural
- Views:

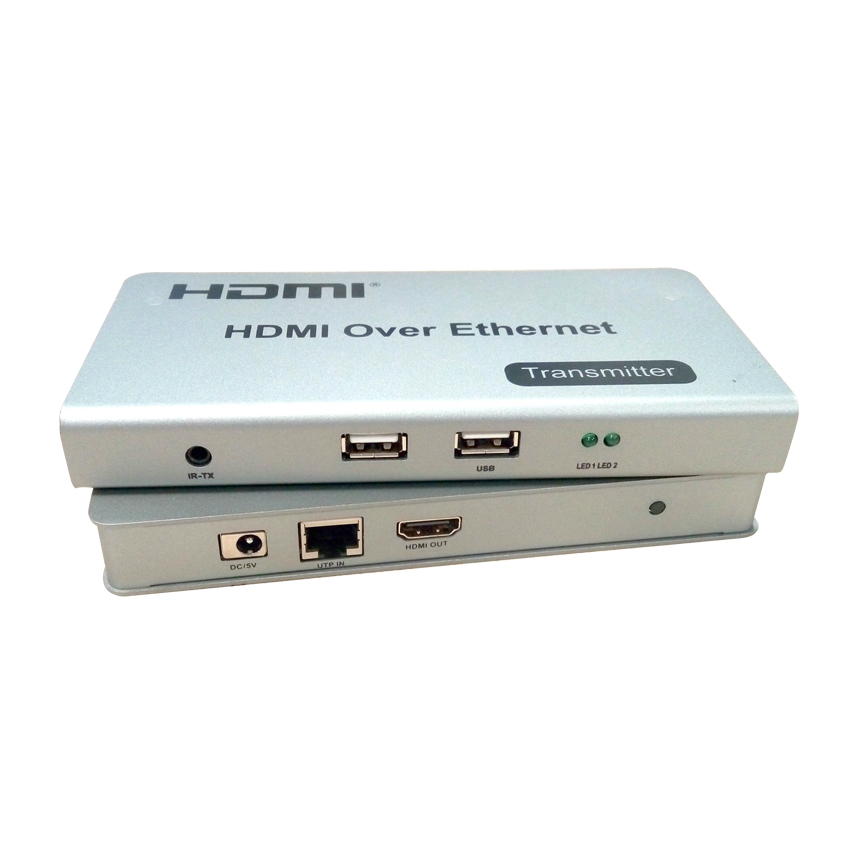

120M TCP-IP HDMI+KVM USB cat5 Extender with IR
Our HDMI KVM Over UTP Extender is based on TCP IP standard It transmits max 120 meters from your HDMI or DVI-D source to HD display by single CAT5e 6 cable At the same time, it’s also convenient to transmit HDMI audio and video source by point-to-point mode, one point-to-many mode and cascade connection mode
- Support HDMI 1.3/HDCP1.1&1.2

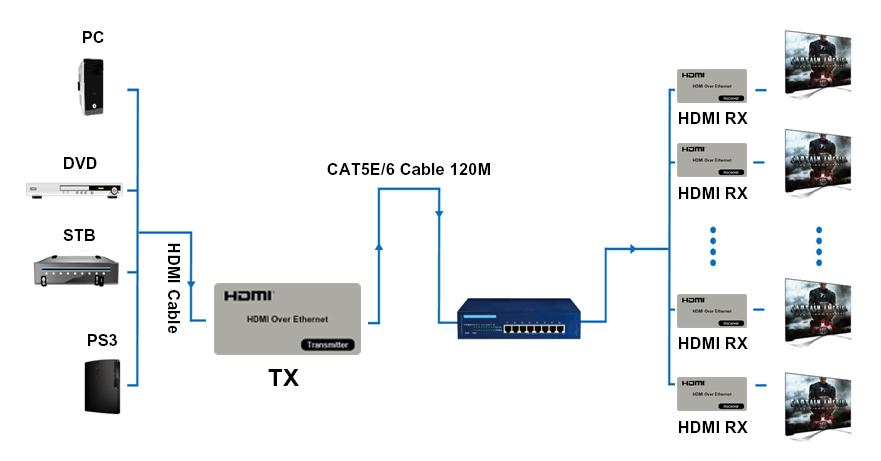

- Support point-to-point mode, one point-to-many mode and cascade connection mode.
- 802.3 Ethernet standard.
- Support IR control, you can control STB or Blue-Ray DVD at receiving site by remote control.
- The design of pure hardware, plug and play, no need for additional software.
- Support IR remote control 38KHz,NEC.
- Support long distance controlled by mouse and keyboard.
| HDTV Resolutions | 480p, 720p,1080p |
| Audio | Sample rate:32kHz,44.1kHz,48kHz |
| IR remote control | 38 KHz;NEC |
| HDMI | HDMI 1.3 |
| HDCP | HDCP 1.2 |
| Power adapter | DC:5V/2A |
| Power consumption | HDMI Sender:3W HDMI receiver:3W |
| Size(L-W-H) | 165*80*21mm |
| Weight | 450g x 2 |
| Operating Temperature/Humidity | 0℃-70℃/10%-80%RH(no condensation) |
| Storage Temperature/Humidity | -10℃-80℃/5%-90%RH(no condensation) |
