- NO.: SE-HDMI11041
- Standards: CE ,FCC
- Brand: No brand
- Views:

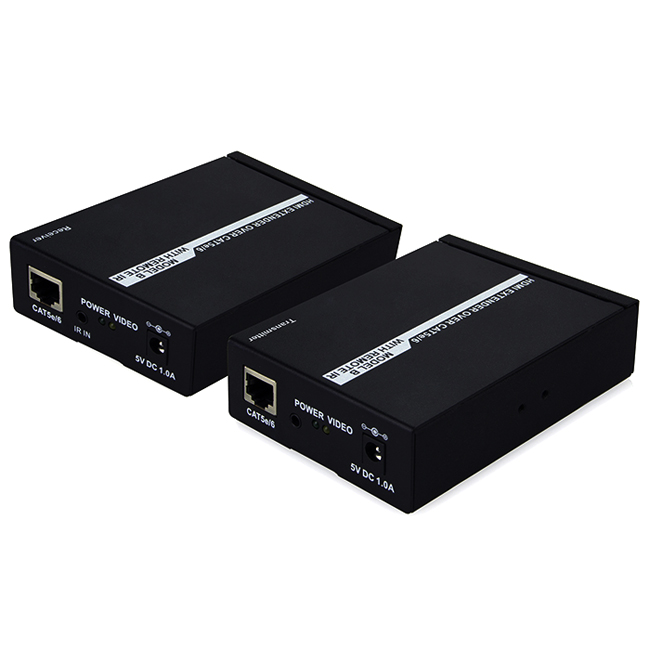

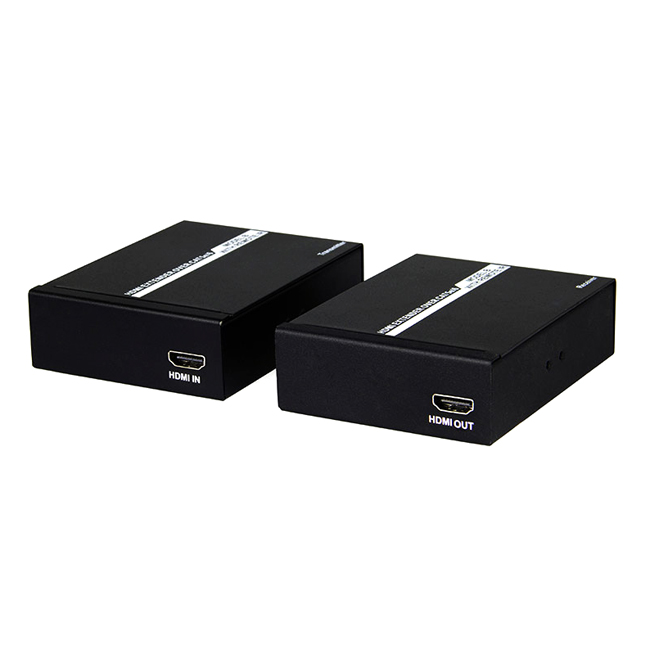

HDMI 50m Single Cat5e/6 extender with IR
Our 50m singleCat5e 6 HDMI extender with IR extender includes one transmitter and one receiver This extender supports remote IR(RX->TX) function to Extend distance is 50 meter
●Support audio formats, Dolby True HD, DTS-master, etc.
●Support 3D signals(all 7 formats), include new ones, such as Frame Packing, Side-by-Side,Top- to-Bottom, etc.
●Support EDID.and CEC
●VESA DDC and hot swap technology (HPD).
●38Khz remote IR (RX->TX).
●Compatible with HDCP 1.2.
●Compatible DVI 1.0.
●Support cascade to enhance extending distance.
●Industrial metal case, easy to install.
|
Video bandwidth |
Maximum TMDS clock frequency 225MHz，6.75Gbps |
|
|
Resolution and distance |
1080P 170ft (50meters)-CAT5e/ 270ft (80meters)-CAT6 720P/1080i 270ft (80meters)-CAT5e/ 330ft (100meters)-CAT6 |
|
|
Audio formats |
8-channel, support Dolby TrueHD and DTS Master |
|
|
TMDS input signal |
1.2 volts (point to point) |
|
|
DDC input signal |
5 volts (point to point) |
|
|
Indicator |
Power-green, video link-yellow |
|
|
HD interface standard |
HDMI 1.3 standard (HDMI 1.4 3D function), HDCP 1.2, support CEC, EDID |
|
|
Remote IR |
38khz |
|
|
Temperature range |
0 ~ 40°C (operation), -20~60°C(stock) |
|
|
Power |
<2.5W TX or <1.5W RX |
|
|
Dimension |
(L x W x H): 110 x 80 x 30mm |
|
|
Net weight |
0.2kgper unit |
|
