- NO.: SE-HDMI11044
- Standards: CE ,FCC
- Brand: No brand
- Views:

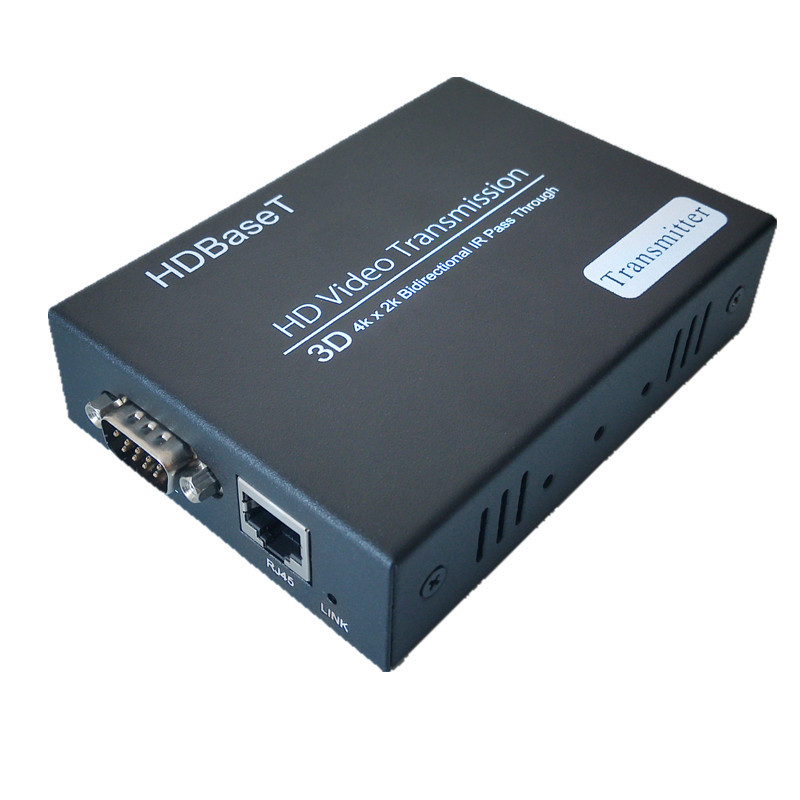

HDbaseT 100m HDMI extender
Our HDbaseT 100m HDMI extender is a HDMI extender via CAT-5E 6 cable as transmission media the transmission distance for 1080P reaches 100 meters for 4K*2K reaches 70meters,support 3D transmission, the IR system could control the sources from the sinks or control the sinks from sources

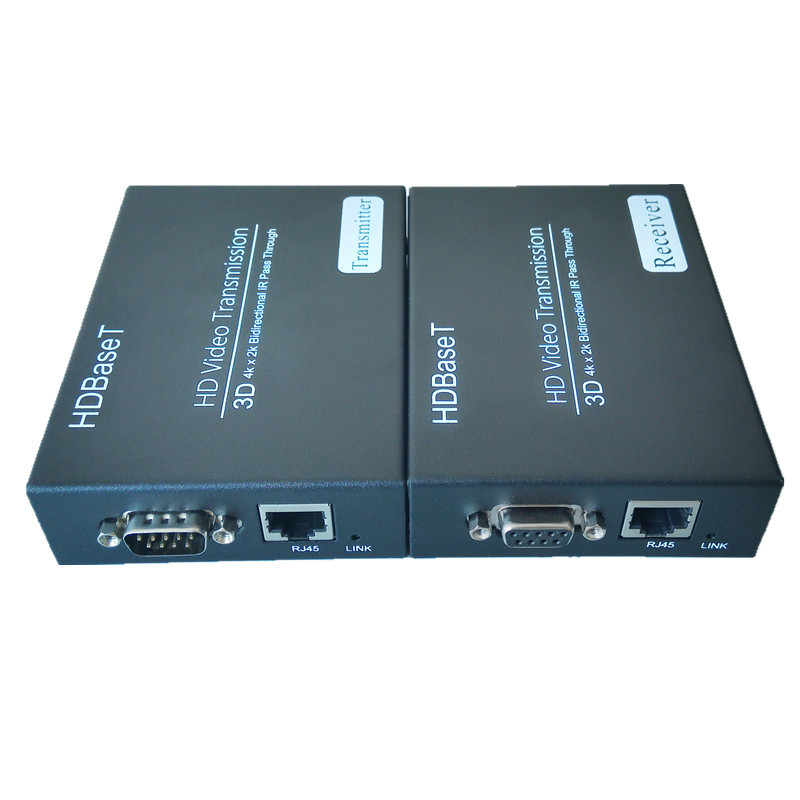

●One pair as a full functional module, no need for setting.
●Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve
long distance transmission.
●UTP cable termination follows the standard of IEEE-568B.
●Transmission distance reaches up to 100 meters under the video format of 1080P. 70 meters for 4 k*2k.
●HDMI V1.4 supported.
●HDCP compliant.
●Full HD support: 1080p@60Hz@48 b/pixels, 3D and 4Kx2K
●With ESD protection inside.
●Mounting ears supplied.
●Transfer Bidirectional Infrared control signal together with the HDMI signal.
●RS232 Port for firmware update or RS232 control signal transmission.
●Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve
long distance transmission.
●UTP cable termination follows the standard of IEEE-568B.
●Transmission distance reaches up to 100 meters under the video format of 1080P. 70 meters for 4 k*2k.
●HDMI V1.4 supported.
●HDCP compliant.
●Full HD support: 1080p@60Hz@48 b/pixels, 3D and 4Kx2K
●With ESD protection inside.
●Mounting ears supplied.
●Transfer Bidirectional Infrared control signal together with the HDMI signal.
●RS232 Port for firmware update or RS232 control signal transmission.
| Type | HDMI 1.4 extender over cat5/6 |
| HDMI Resolutions | 480i/p,576i/p,720p 25/30/50/60 ,1080p 25/30 1080i50/60 ,1080p50/60 |
| Audio | Support DTS-HD, Dolby-HD |
| IR remote control | 38KHz; NEC |
| HDMI | HDMI 1.4 ,HDCP1.2 |
| Distance | 1080p CAT6 120 Meters 1080p 3D CAT6 100 Meters 4K*2K CAT6 70 Meters |
| Power adapter | Input: 100V - 240V (50 - 60Hz) Output: 5V/1A |
| Power consumption | HDMI Sender: 3W HDMI Receiver: 3W |
| Size(L-W-H) | 100×60×25mm |
| Weight | 70g |
| Operating Temperature/Humidity | 0℃ - 70℃ / 10% - 80%RH(no condensation) |
| Storage Temperature/Humidity | -10℃ - 80℃/ 5% -90% RH(no condensation) |
