- NO.: SE-HDMI11046
- Standards: CE,FCC
- Brand: No Brand
- Views:
500M HDMI Coax Extender
The HDMI coaxial extender can do digital coding processing for HDMI signal with DTV technology The product adopts RF modulation technology characteristic to transmit the Multiple RF signal through one analog coaxial cable (SYV-75 RG59) for long distance transmission without amplification

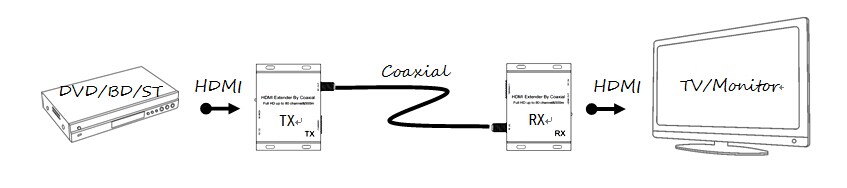

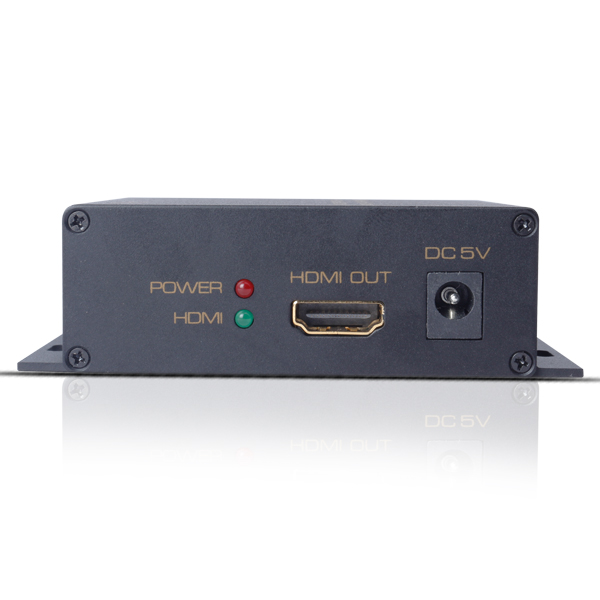

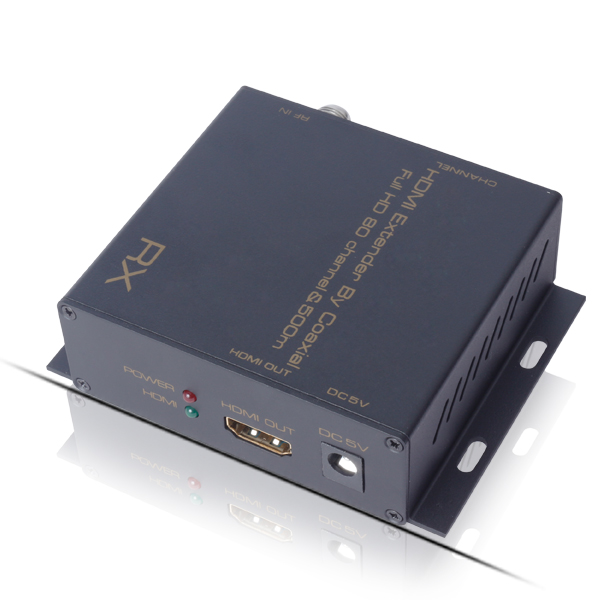

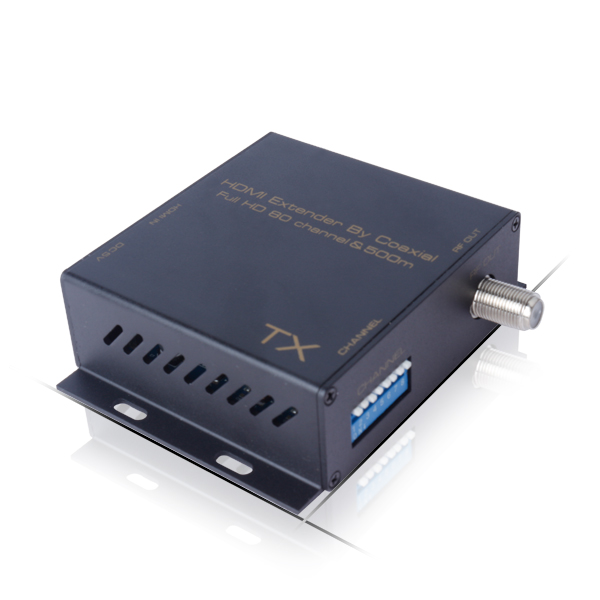

- Contains a transmitter (TX) and a receiver (RX). The TX supports a HDMI input and the RX supports a HDMI output.
- Support HDMI resolution up to 1080P/60Hz.
- Transmission distance up to 500 meters by SYV-75-5 coaxial cable and no need amplification.
- Adding digital TV network mixer in RF cable, can easily achieve many kinds of transmission mode, e.g. signal split, switching and matrix.
- Support 80 channels for option; frequency ranges 139MHz~950MHz.
- Products using the broadcast signal transmission mode, only one line can transmit 48 channels of high-definition video signal at the same time.
- The use of digital TV communication protocol, anti interference and error correction capability is very strong.
- Installs in minutes. Analog monitor system upgrade to HD systems can continue to use the original connector and cable.
- DC5V/1A power adapter
HDMI resolution ……………………………………..24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
HDMI Audio Format……………………………………………………………………………………..LPCM
HDMI Max bandwidth………………………………………………………….……………………...225MHz
HDMI Max baud rate…………………….………………….………………….……………………6.75Gbps
Input/Output TMDS signal ………….……………………………….……………….0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..……………………. 5Volts p-p (TTL)
RF frequency range…………………………………………………………………………...139～950 MHz
RF Channel B/W…………………………………………………………………………..................7/8 MHz
The number of Channel…………………………………………………………………............................80
RF Output power…………………………………………………………………..............................-6dBm
RF Connector type…………………………………………………………………The imperial F type/BNC
Coaxial cable Characteristic impedance…………………………………………………………………75Ω
RF transmission distance………………………………………≤500m SYV-75-5 coaxial standard cable
HDMI output cable distance………………………………………...≤15m AWG26 HDMI standard cable
TX Max working current …………………………………………………………….……….…….…. 650Ma
RX Max working current …………………………………………………………….……….…….…. 500mA
Power adapter format Input ……......….….…….…….…….…. AC 100V～240V 50HZ/60Hz, DC5V/1A
Operating Temperature range ……..…………….……………………………………………. -10 to +45℃
Storage Temperature range……………………………………………………………………. -20 to +60℃
Operating Humidity range ………………………….….……….……….10 to 90%RH (No Condensation)
Storage Humidity range………………………….….……….……………5 to 95%RH (No Condensation)
Case Dimension (L x W x H) ………………………………….…………………………….94x74x28 (mm)
Weight …….…………………………….………………………………………….………………..…… 240g
