- NO.: SE-HDMI8210
- Standards: CE,FCC
- Brand: No brand
- Views:

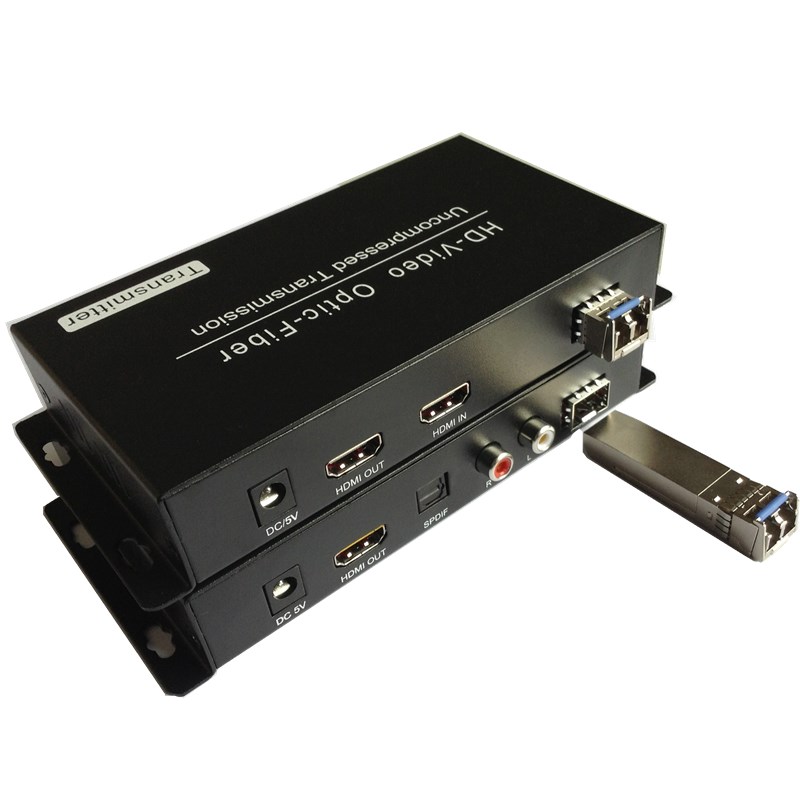

uncompressed HDMI fiber Converter with HDMI loopout
OUr uncompressed HDMI fiber converter can extend HDMI video signal through single optical fiber Extending distance is 2km~20km It can be used in video meeting room and family applications The system is stable and easy to use
●Compatible with HDMI1.3 standard.
●Compatible with HDCP1.2 standard.
●Transmitter has HDMI local output.
●Separated audio output. ]
●Support 1080p@60Hz, 3D
●Extending distance can be chose, 2km or 20km.
●Uncompressed HDMI video signal.
●10G optical module.
●Internal ESD protection.
●Easy to install, plug and play.
●Compatible with HDCP1.2 standard.
●Transmitter has HDMI local output.
●Separated audio output. ]
●Support 1080p@60Hz, 3D
●Extending distance can be chose, 2km or 20km.
●Uncompressed HDMI video signal.
●10G optical module.
●Internal ESD protection.
●Easy to install, plug and play.
| Model | HDMI optical Transceiver |
| Input /Output interface | TX : HDMI In , HDMI Loop-back Rx : HDMI out , Audio (L/R) out |
| HDMI interface | |
| Standard | Support HDMI 1.3 a /HDCP1.1 & 1.2 |
| Resolution | 480i,525i,576i, 625i,720p, 1080i,1080p |
| Audio | Integrated HDMI signal |
| Digital Audio | 32kHz, 44.1kHz and 48kHz |
| AES digital audio channel | 8CH |
| Audio (Output ) | 2CH , L/R Channel ,48KHZ |
| Optical inteface | LC |
| Type | Single Mode, dual fiber Fiber ( Multimode custom ) |
| Wavelength | 1310/1550nm |
| Distance | 0m-20Km |
| Transmitted power | -10dbm～-3dbm |
| Maximum Receiving Sensitivity | <-34dbm |
| Power Supply | DC5V,1A |
| Power Consumption | 3~5 Watts |
| Operating Temperature | 0°C ~ 60°C / 32°F ~ 140°F |
| Storage Temperature | -30°C ~ 70°C / -22°F ~158°F |
| Relative Humidity | 20~90% RH (Non-condensation) |
| Dimension | 182×100×37 mm |
| Weight | 600g (Tx and Rx) |
