- NO.: SE-SDIN40
- Standards: CE,FCC. ROHS
- Brand: Netural
- Views:

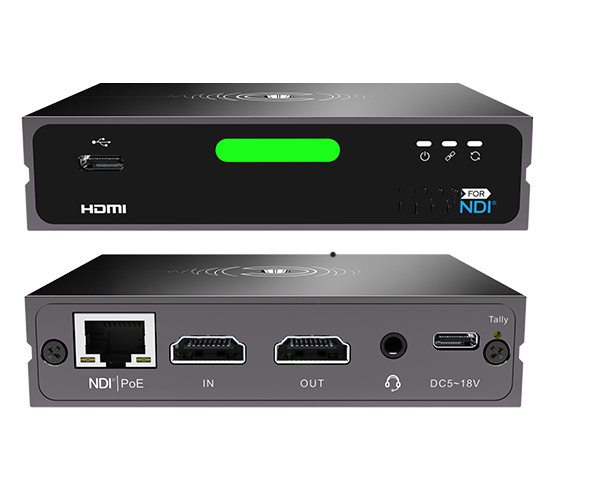

HDMI NDI encoder and decoder
Our HDMI NDI bidirection converter supports up to HDMI video input to full NDI and loop through for monitoring, at the same time it supports full NDI to HDMI output It’s a real broadcast-grade NDI converter
1.Featured with powerful functions such as PoE, built-in big tally light, PTZ control, 3.5mm audio line in/out, multi-channel audio, intercom functions, our HD-SDI NDI bidirection converter is your best choice to get access to the fabulous NDI world for professional broadcast-grade IP production
2.It's an NDI encoder, it's also an NDI decoder
NDI encoding and decoding can work on this device, you got two in one. Switching the working mode on the UI to choose the mode you need; it can easily meet all your different workflows.
3.Seamless Switching without laggy
When decoding NDI sources, with Kiloview unique technology, there will be no splash or laggy when switching the output NDI videos

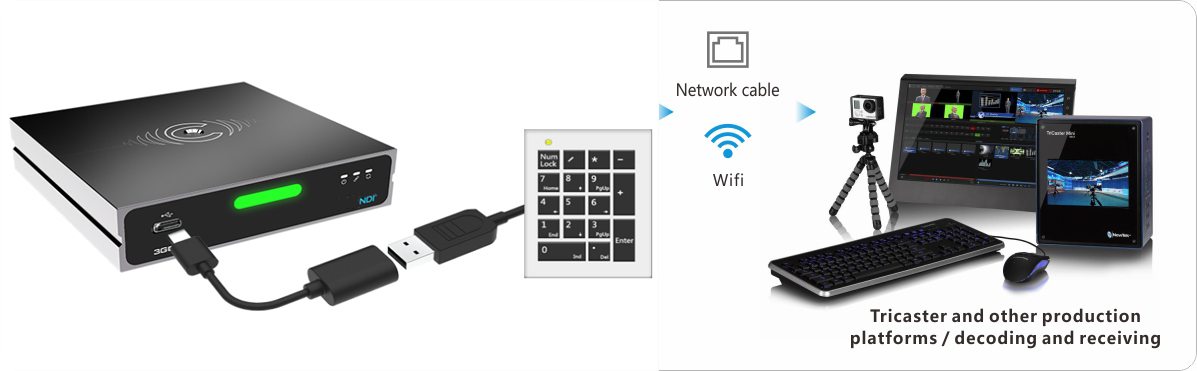

4. Control with a USB keypad
In decoder mode, you can preset the NDI sources from number 0~9. Connect the decoder with a USB keypad, you can easily choose the output source by a single press.Or you can even use the USB Keypad to control a PTZ camera- the cheapest PTZ Keyboard you can get.
5.Video Source Auto-detecting
Thanks to the NDI discovery server, your video can be easily found and connected by users from another network when registered to the designated server.
6.PTZ Control and Big-sized Tally
The device supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required.
The device has a big-sized while bright and distinct Tally for PVW/PGM indication – all is to make perfect cooperation for your team.
2.It's an NDI encoder, it's also an NDI decoder
NDI encoding and decoding can work on this device, you got two in one. Switching the working mode on the UI to choose the mode you need; it can easily meet all your different workflows.
3.Seamless Switching without laggy
When decoding NDI sources, with Kiloview unique technology, there will be no splash or laggy when switching the output NDI videos
4. Control with a USB keypad
In decoder mode, you can preset the NDI sources from number 0~9. Connect the decoder with a USB keypad, you can easily choose the output source by a single press.Or you can even use the USB Keypad to control a PTZ camera- the cheapest PTZ Keyboard you can get.
5.Video Source Auto-detecting
Thanks to the NDI discovery server, your video can be easily found and connected by users from another network when registered to the designated server.
6.PTZ Control and Big-sized Tally
The device supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required.
The device has a big-sized while bright and distinct Tally for PVW/PGM indication – all is to make perfect cooperation for your team.
| Model | HDMI NDI encoder and decoder |
|---|---|
| Video input | 1*HDMI |
| Video output | 1*HDMI（Loop or decoding output） |
| Audio port | 1*3.5mm |
| Network | 1*RJ45 1000Mbps Ethernet port (with PoE) |
| Video resolution | Up to 4Kp60 (backward compatible with SD/HD/VESA) |
| NDI® codec capacity | 1*NDI® encoding or 1x NDI® decoding |
| NDI®CODEC feature | FULL NDI HD encoding, typical bitrate: 250Mbps@4K60 ,125Mbps@1080p60 |
| LED indicator | Tally light, power light and status connection light |
| Power | PoE, DC, D-Tap (camera) optional. 5-18V wide range supported |
| Voice intercom | Customization |
| PTZ control | Network PTZ and Serial Port |
| DHCP | Support |
| Management | WEB page |
| Power consumption | 6w |
| Operating temperature | -20~40℃ (Storage temperature: -20~70℃) |
| Dimension | 110*95*23 mm (4.33”*3.74”* |
