- NO.: SE-VGA100m
- Standards: CE ,FCC
- Brand: No brand
- Views:

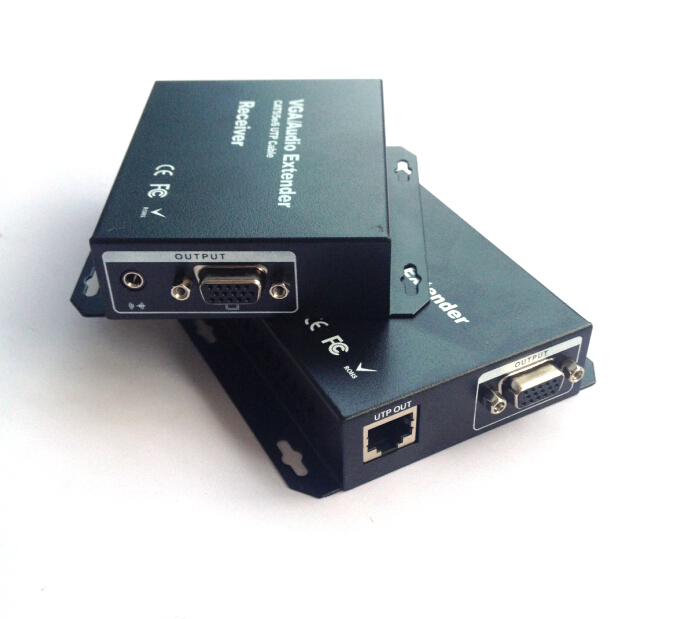

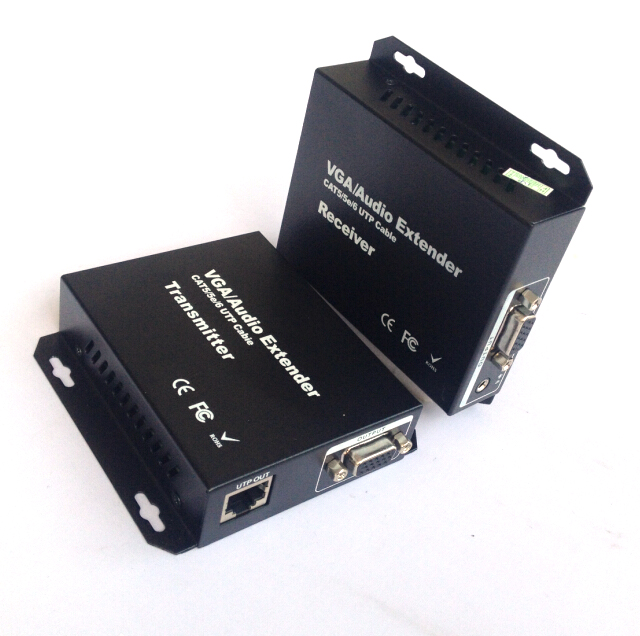

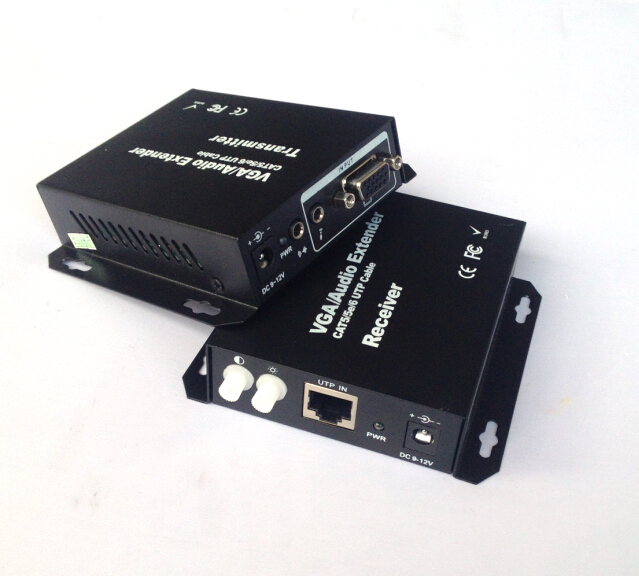

VGA audio cat5 extender upto 100m with single RJ-45 Port
Our mini type VGA audio cat5 extender is used to extend VGA and audio signal via cat5 cat6 up to 100m We apply high performace IC and mature products project to offer powerful compliance
- Include in one TX part,, another RX part.
- Apply high performance IC to offer stable high performance and wide range temperature
- Extend VGA and audio signal from computer or others device up to 100m
- Support real-time and zero delay control for remote audio and video
- Build-in surge protection design : withdraw air-electron discharge 15KV ,contacted discharge 58KV
- Plug and play design without any adjustment and easy install
| Model | VGA CAT5/6 Extender with audio input/output |
| Input/output interface /TX | 1x VGA and 2x audio / 1xRJ-45 |
| Input/output interface/RX | 1x RJ-45/1XVGA and 1x audio |
| Audio input/output | 3.5mm audio socket (Unbalanced Connection) |
| Extend distance | 100m |
| VGA resolution | VGA, SVGA, XGA, SXGA, UXGA upto 1920x1440 |
| Video standard | 0.7Vpp |
| Audio standard | 1Vpp |
| N.W | 0.7kg |
| Power supply | DC12V,1A |
| Size | TX / RX： 65*45*25mm |
