VGA Cat5  Extender

    VGA audio cat5 extender upto 300m

  • NO.: SE-VGA300
  • Standards: CE ,FCC
  • Brand: No brand
  • Views:

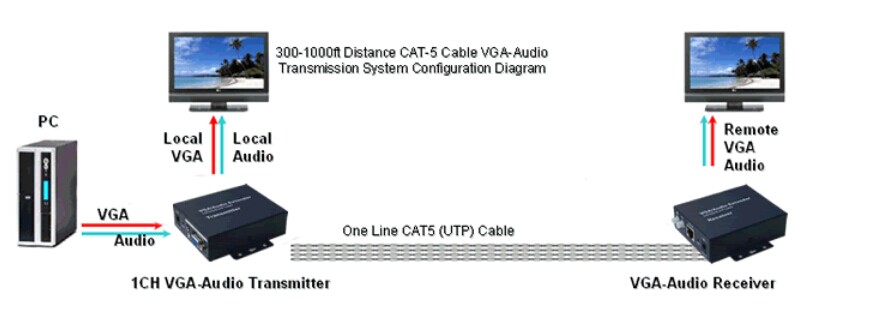

Our VGA audio cat5 extender is used to extend VGA and audio signal via cat5 cat6 up to 200m We apply high performace IC and mature products project to offer powerful compliance

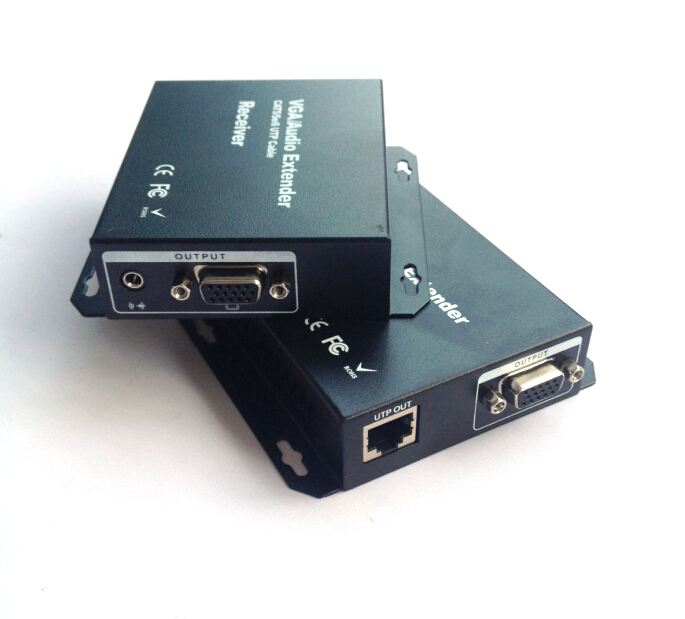

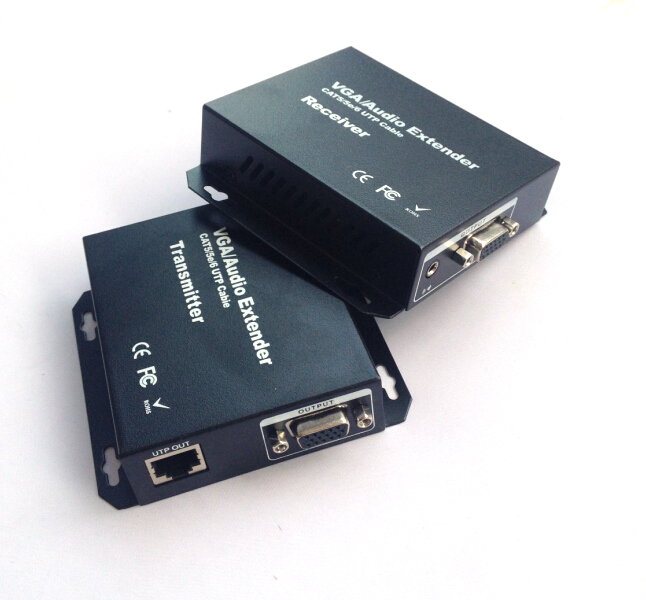

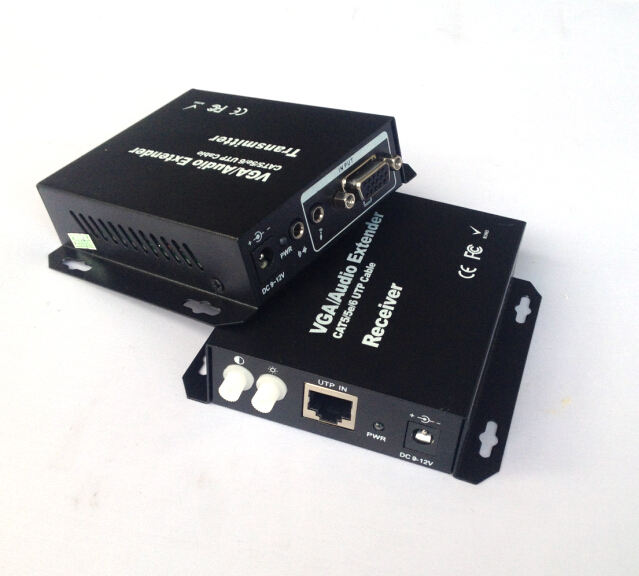

  • Include in one TX part and another RX part
  • Apply high performance IC to offer stable high performance and wide range temperature
  • Extend VGA and audio signal from computer or others device up to 300m
  • Support real-time and zero delay control for remote audio and video
  • Build-in surge protection design : withdraw air-electron discharge 15KV ,contacted discharge 58KV
  • Plug and play design without any adjustment and easy install
Model  VGA CAT5/6 Extender with audio input/output
Input/output interface /TX  1x VGA and 2x audio  / 2xRJ-45
Input/output interface/RX  1x RJ-45/1XVGA and 1x audio
Audio input/output 3.5mm audio socket (Unbalanced Connection)
Extend distance  100m
VGA resolution  VGA, SVGA, XGA, SXGA, UXGA upto 2560X1660/60HZ
Video standard  0.7Vpp
 Audio standard  1Vpp
N.W 0.7kg
Power supply  DC12V,1A
Size  TX/RX:95*75*25 mm
