- NO.: SE-VGA200KVM
- Standards: CE, FCC
- Brand: No brand
- Views:

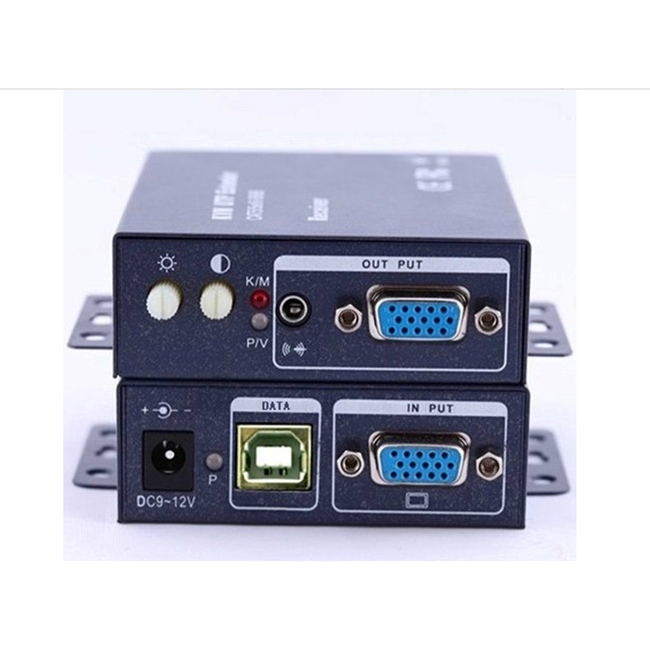

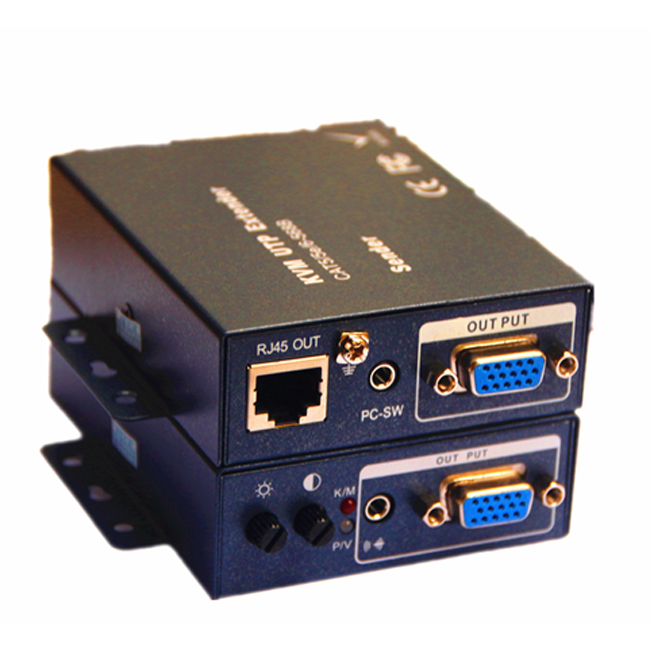

200m VGA+KVM cat5 Extender
Our VGA and KVM cat5 Extender are compose of transmitter and receiver to extend VGA and keyboard and or mouse or monitor signal upto 200m via cat5 5e Apply USA IC project and standard proof-lightning and ESD surge protection to ensure real-time signal transmission and high stability
- Extend VGA and /or Keyboard or Mouse or Monitor signal upto 200m
- Suport hot-swap of keyboard, mouse or monitor to input or draw off any type keyboard ,mouse or monitor
- Built-in the common mode offset potential difference design of the transmitter to remove instantaneous splash screen
- Support to simulate keyboard and mouse to start-up computer
- If do not need remote on -off and reset function,Local end unit would not offer power supply
- Support USB and PS/2 interfere of Keyboard or mouse and Intellimouse Logitech Net Mouse and other’s MS compliance mouse
- Support any operation system like DOS,Windows , NT,Linux
- Support plug and play function to easy installation
Item | 200m VGA+KVM cat5 Extender | |
Model | Transmitter | Receiver |
I/O interfere | 1VGA in 1VGA loop back 1 USB |
1 VGA out 1 USB/PS2 out |
VGA interfere | HD15 pin female | |
Video bandwidth | 500Mhz@-3db | |
Video Gain | 6db | |
Impedance /VGA | 75OHM | |
Optimum Resolution | 1024*768@60Hz —1920*1200@60Hz VGA, SVGA, XGA, SXGA, UXGA |
|
Max Resolution | 2560*1600@60Hz | |
RJ-45 | Female | |
Wire Connection | EIA/TIA-568B ,1236 wiring ,Go-through line | |
Distance | 100m | |
Size | 95*97*28mm | |
Storage temperature | -10℃—60℃ | |
Working temperature | -25℃—70℃ | |
Power suppply | DC9V /12V ,1A |
