- NO.: SE-VGA8002
- Standards: CE,FCC
- Brand: No brand
- Views:

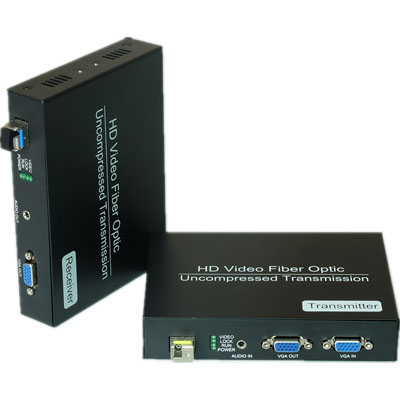

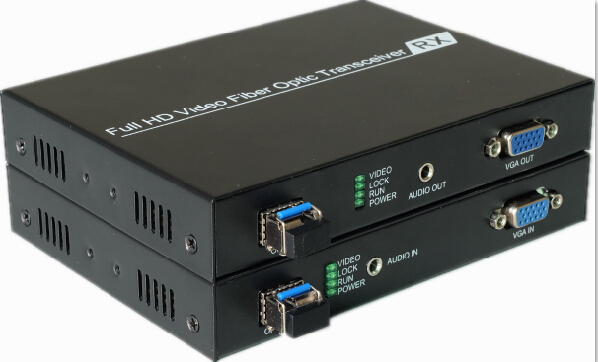

uncompressed VGA Fiber extender
Our uncompressed VGA fiber transceiver are designed to transmite uncomressed VGA and Audiao signal from computer or DVR ect upto 20KM over single fiber The device include in one transmitter end and one receiver end as kit
- Digital and uncompressed high resolution image fiber transmission upto 5-20KM
- Compliance to standard VGA protocol
- Support VGA loop-back , Analog audio input/output
- Auto-learning and set different resolution mode
- Max resolution is 1920x1200 @60hz (1KM)
- Plug and play design to easy install
| Model | VGA fiber transceiver |

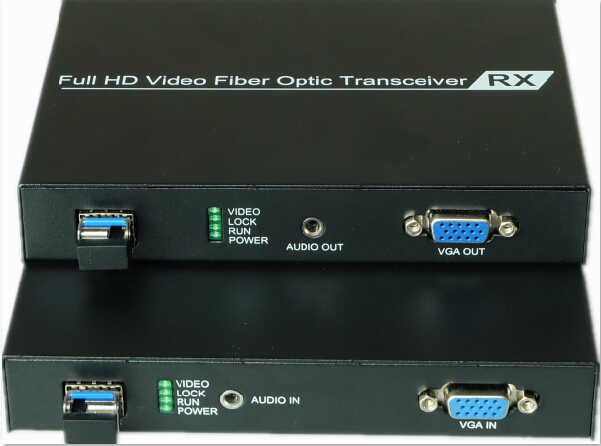

| Input /output Interface | TX --- 1X VGA In , 1 Audio in , Rx ---1X VGA Out , Audio Out |
| Digital bit | 24bit |
| Bandwidth | 1.65G HZ (-3db) |
| Rate | 240M Hz~-1.6G Hz |
| Format | VGA,SVGA，XGA，WXGA。 |
| Resolution | 800x600 @60/75hz 1024x768@ 60/75hz 10280x720@60/75hz 1280x800@60/75hz 1280x1024@60/75hz 1600x1200@60/75hz 1920x1200@60/75hz |
| Audio | 3.5mm phone jack |
| Audio format | 44.1k ,48k ,96k,176k,192k |
| Fiber optical | |
| Interface | LC |
| Transmitted power | -9.5~-3dBm |
| Receiver Sensitivity | -23dBm |
| Optical Type | Single Mode, Single fiber Wavelength : 1310/1550nm |
| Distance | 5-20 KM (Default 5KM _ |
| Power Supply | DC5V, 1A |
| Working temperature | -5 – 70 |
| Relative Humidity | 20~90% RH (no condensation) |
| Dimension | 300(L)×152(W)×100(H ) |
| Weight | 1.8kg |
