- NO.: SE-AHD8004
- Standards: CE,FCC
- Brand: No brand
- Views:
4CH AHD Balun

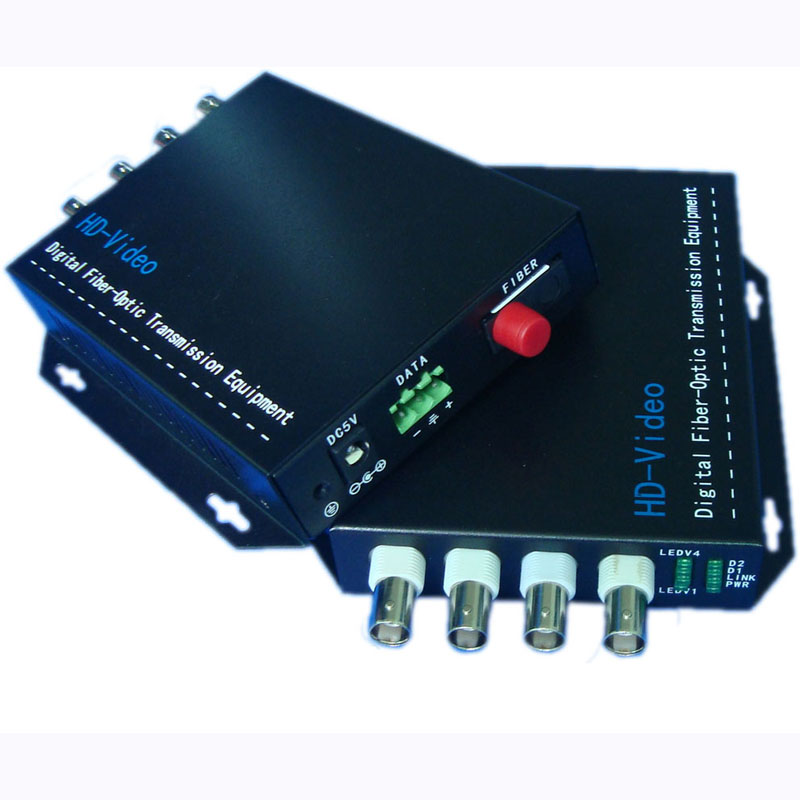

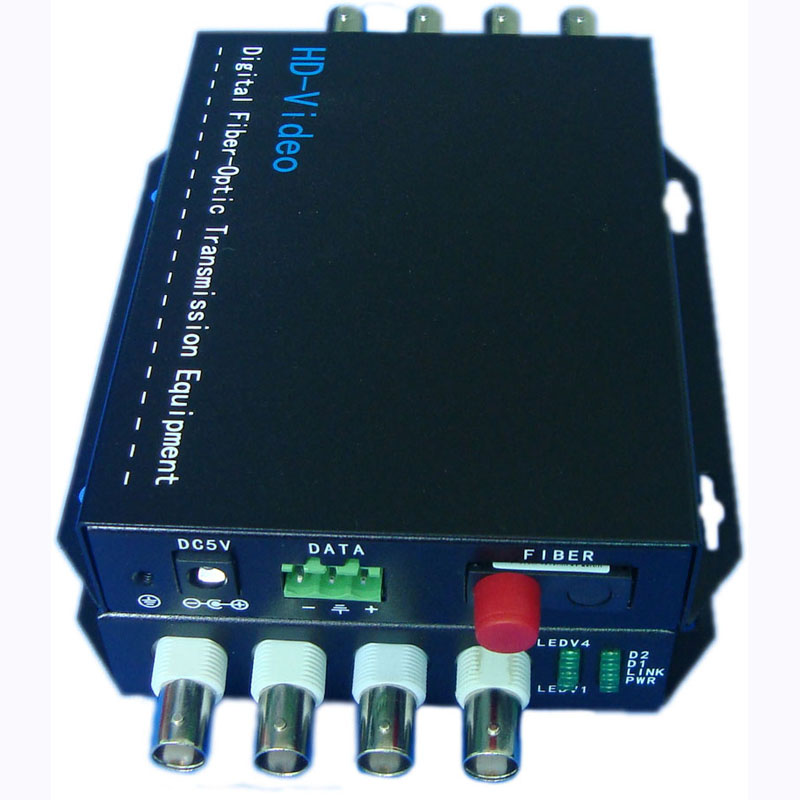

Our 4CH AHD fiber converter are used to extend standard 4CH AHD signal extra long distance via fiber cable upto 20KM and Max resolution is 720p This device include one transmitter and one receiver as kit
- Full digital, Uncompressed video transmitting
- Support resolution :720p, 960H,
- Compatible with NTSC、PAL、SECAM video formats automatically
- Supports RS485/Manchester Code/ Diphase data, Switching signal
- Advanced self-adaption technology, it is no need to adjust when you are using it
- Industrial level design, high reliability
- Compact structure, easily installation, plug and play
- Overpower protection and 5.7KV proof-lightning
| Model |
4CH AHD Fiber Converter | |
| Transmitter (TX) | Receiver (RX ) | |
| Input Interface | 4x AHD BNC 1x RS-485 screwing block |
FC/PC fiber |
| Output Interface | FC/PC fiber | 4X AHD BNC 1XRS-485 screwing block |
| Video | Interface | BNV |
| Impendence | 75Ω（unbalance） | |
| Video t Voltage | 1.0Vp-p Type | |
| Video Bandwidth | 50MHz | |
| Rsolution | 1280（H）* 720（V） | |
| Differential gain （10%-90% APL） | <±1% Type | |
| Differential phase（10%-90% APL） | <±1% Type | |
| SNR | >60dB（8Bit） | |
| Optical interface | Wavelength | 1310nm&1470nm-1610nm |
| Fiber cable Type | 50/125u multimode、62.5/125u multimode、9/125u single mode | |
| Typical output power | -3~-9dBm | |
| Typical receiver Sensitivity | -26dBm | |
| Interface | FC，ST，SC(optional) | |
| Others | Power Supply | 110V~240V,DC5V,2A |
| Humidity | 0~95% non condensation | |
| Work temperature | -0℃~60℃ | |
| Storage temperature | -40℃~85℃ | |
