- NO.: SE-AHD2001HA
- Views:

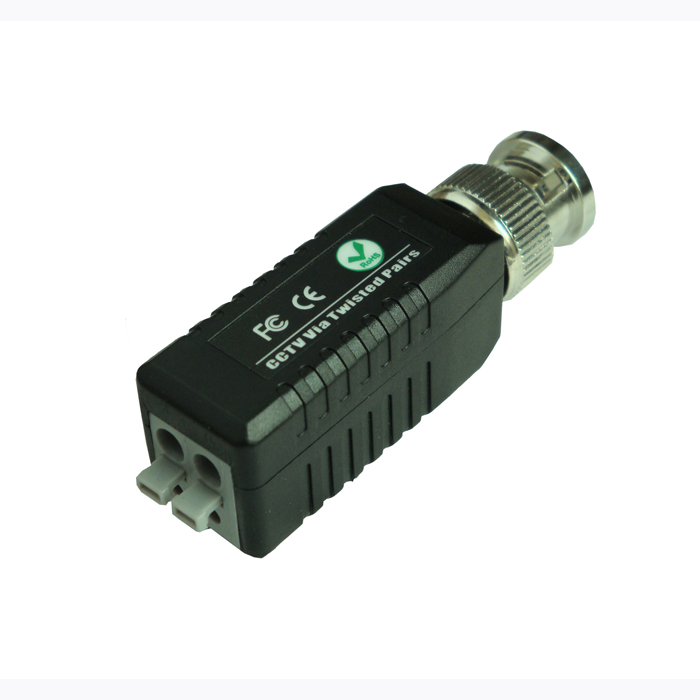

1CH 1080P AHD/CVI/TVI Balun
Our 1080P AHD CVI TVI passive UTP balun mainly used to transmit AHD CVI TVI signal via cat5 6 cable for security, education and other fields and support 720p,1080p it will save wiring costs, simplify your wiring works
- Compatible with AHD/CVI/TVI signal
- Transmission distance up to 300m working with passive transceivers,
- Compact size and easy installation
- Compatible with all qualified UTP cameras
- No power needed.
- NTSC, PAL, SECAM video formats
- Resolution :1080P 720p, 960P
- ABS plastic shell fire, copper BNC connector, environmental terminal
| Model | AHD/CVI/TVI balun |
| Interface | 1x BNC, 75ohm ,RJ-45 |
| Frequency | 21Mhz, 60db |
| Range | 1－2Vp-p |
| Transmission distance | 0-300m |
| Standard | PAL, NTSC, SECAM |
| Resolution | 1080p ,720p ,960P |
| Impedance | Coax (BNC female) 75 Ohm; UTP (unshielded twisted pair) 100 ohms |
| Cable Type | Cat5 or Cat5e unshielded twisted pair |
| Cable Impedance | 100 ± 20 ohms |
| Distributed capacitance | less than 62pF/m |
| DC loop resistance | 18 Ohm/100m |
| Distance | 720P (TVI/CVI ) 300Meter 720P AHD/960P 200Meter 1080P TVI/CVI 200Meter |
| Operating temperature | -20oC~70oC |
| Relative Humidity | 0~95%(non-condensing) |
| Storage temperature | -40oC~150oC |
| Dimension | 39mm x 19 mm x 16 mm |
| Net Weight | 100g |
