- NO.: SE-AHD3004
- Standards: CE,FCC
- Brand: No brand
- Views:

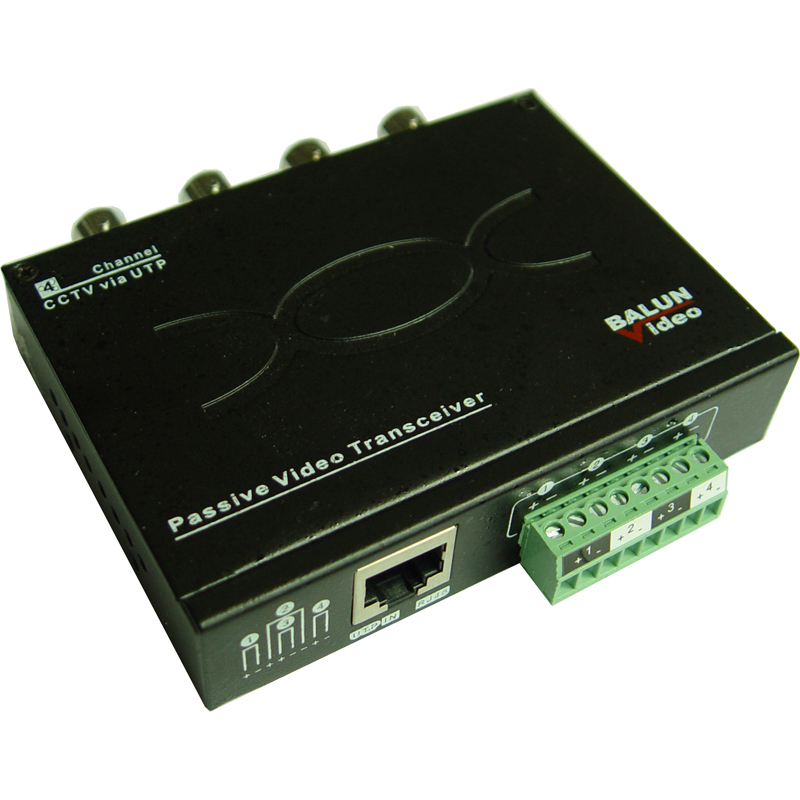

1080P 4CH AHD /CVI/TVI passive Balun
1080P 4CH AHD CVI TVI passive UTP balun mainly used to transmit AHD signal via cat5 6 cable for security, education and other fields and extend 200 meters for 720p AHD signal it will save wiring costs, simplify your wiring works
- Compatible with AHD ,CVI /TVI signal
- Transmission distance up to 300m working with passive transceivers,
- Compact size and easy installation
- Compatible with all qualified UTP cameras
- No power needed.
- NTSC, PALvideo formats
- Resolution :1080P ,720p, 960P，D1
- ABS plastic shell fire, copper BNC connector, environmental terminal
| Model | 4AHD /CVI/ /TVI Passive Balun |
| Interface | 4x BNC, 75ohm ,RJ-45 |
| Frequency | 21Mhz, 60db |
| Range | 1－2Vp-p |
| Transmission distance | 0-300m |
| Standard | PAL, NTSC |
| Resolution | 720P,960H, D1 |
| Impedance | Coax (BNC female) 75 Ohm; UTP (unshielded twisted pair) 100 ohms |
| Cable Type | Cat5 or Cat5e unshielded twisted pair |
| Cable Impedance | 100 ± 20 ohms |
| Distributed capacitance | less than 62pF/m |
| DC loop resistance | 18 Ohm/100m |
| Distance | 720 P ，960P，D1 TVI ：150M AHD： 200M CVI ：300M 1080P TVI ： 100M AHD ： 150M CVI ：250M |
| Operating temperature | -20oC~70oC |
| Relative Humidity | 0~95%(non-condensing) |
| Storage temperature | -40oC~150oC |
| Dimension | 100mm x 74 mm x 40 mm |
| Net Weight | 100g |
