- NO.: SE-AHD308H
- Standards: CE,FCC
- Brand: Netrual
- Views:

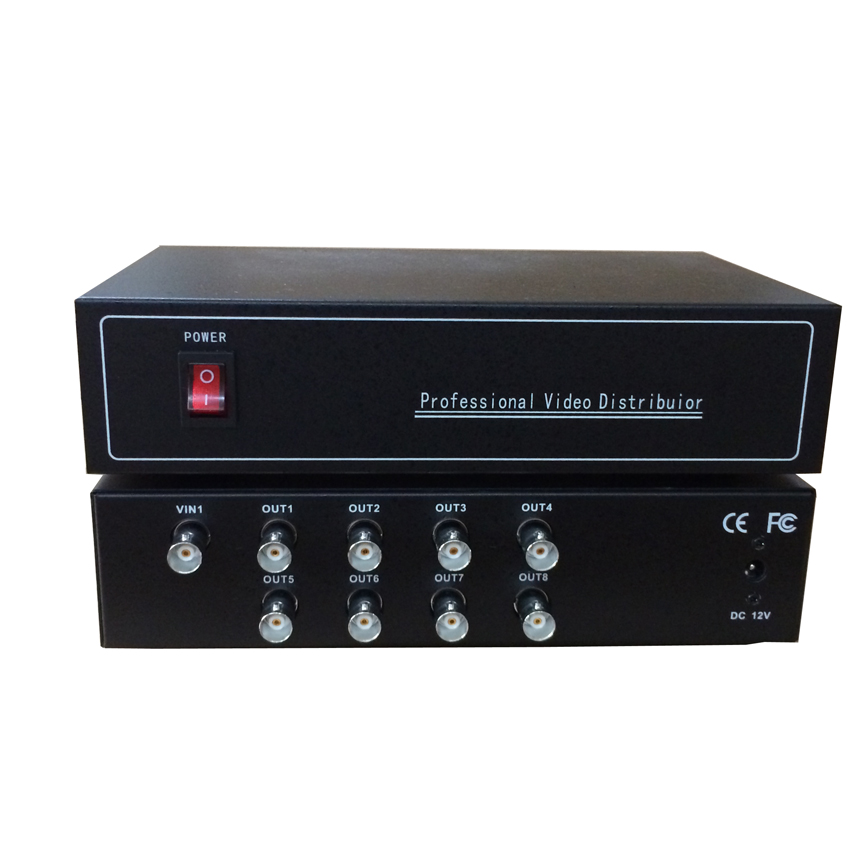

1080P 1 to 8 AHD&CVI&TVI Distribution amplifier
Our 1080p 1 to 8 AHD CVI TVI distribution amplifier is one economical device and designed to split one chance AHD CVI TVI video source to four displays simultaneously Compatible to AHD CVI TVI standard and support AHD-H, AHD-M, AHD-L resolution to meet with different requirement
- Support multi-standard :AHD, TVI, CVI
- Support multi-format 1080p25/30,720p25/30/50/60, 960H, 960P, D1
- Extend more distance : 1080P 300M
- Support 1 video source to split to 8 displays
- Design with 3KV ESD design
| Item | 1 to 8 AHD/CVI/TVI Distribution amplifier |
| Video | |
| Input | 1 |
| Output | 8 |
| Interface | BNC-F |
| Video Range | 1.0Vp--p/75Ω |
| Impedance | 75ohm |
| Video bandwidth | 36Mhz |
| Extend distance | 300M |
| Resolution | 1080p 25/30 ,720P 25/30/50/60 ,960H, 960P, D1 |
| Operating temperature | -20oC~70oC |
| Relative Humidity | 0~95%(non-condensing) |
| Storage temperature | -40oC~150oC |
| Dimension | mm x mm x mm |
| Net Weight | 230g |
