- NO.: SE-AHD6810h
- Standards: CE,FCC
- Brand: No brand
- Views:
1080p AHD to HDMI & VGA & AV Converter

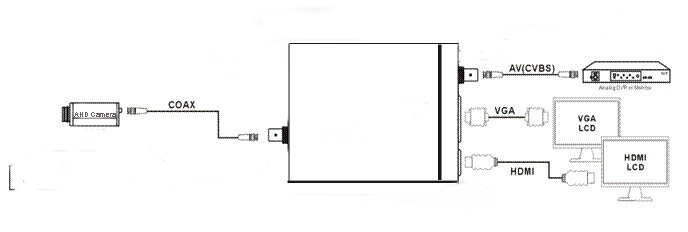

Our 1080P AHD to HDMI & VGA & AV Converter is designed to convert one channel 1080p AHD video source to HDMI &VGA & AV displays simultanously It supports multiple resolution up to1080P25 30 50 60 and supports the most popular resolutions to ensure high compatibility with wide brands of PC and HDTV It provides cheaper solution to connectI AHD to HDTV and VGA terminal
- Support all type AHD resolution：1080p, 720p, 960, D1
- HDMI resolution : 480,576, 720P, 1080I,1080P
- VGA output support 128X720,1920X1080P
- User selectable output format (HDMI and VGA and AV)
- Dip switch of PAL / NTSC
| Model | AHD to HDMI &VGA& AV converter |
| Input Interface | 1x BNC AHD |
| Input Signal Type |
AHD |
| Support Input Format | 1080P, 720P, 960, D1 |
| Video Signal Range | 0.8V p-p |
| Video Impedance | 75 ohms |
| Max. Input Coax Length | 500meter for 720p |
| HDMI/DVI Output | 1x HDMI |
| HDMI format | 480,576,720,1080I,1080P |
| VGA Output | 1x VGA |
| VGA format | 1280*720@60Hz、1920X1080P 60HZ |
| AV (CVBS) output | 1 x BNC –F |
| AV format | PAL and NTSC |
| Power Supply | DC12V,1A |
| Power Consumption | 4-5Watts |
| Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F |
| Storage Temperature | -30°C ~ 70°C / -22°F ~158°F |
| Relative Humidity | 20~90% RH (Non-condensation) |
| Dimension |
