- NO.: SE-AHD6810E/C
- Standards: CE,FCC
- Views:

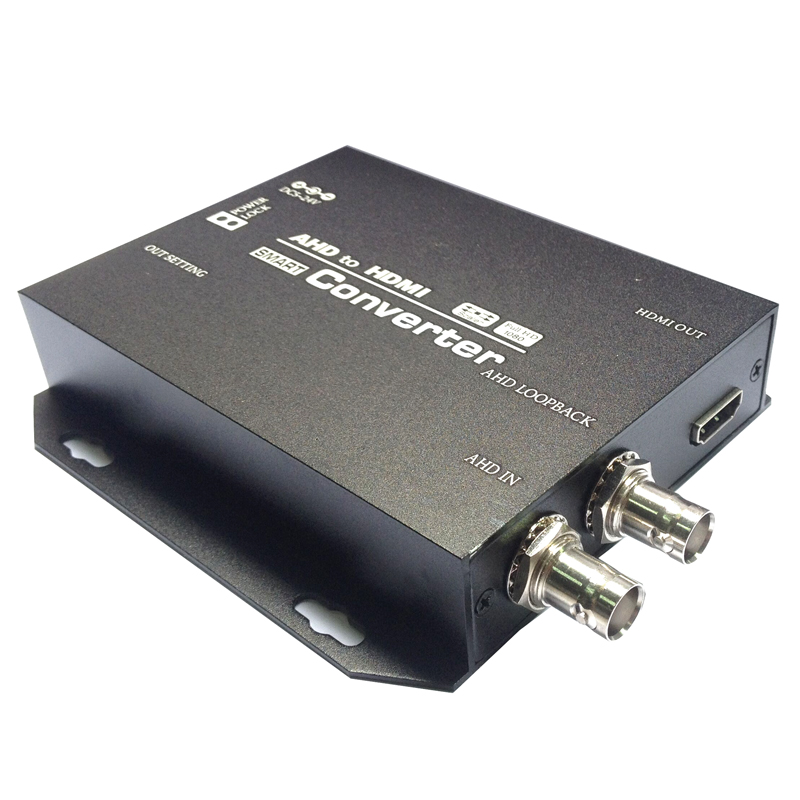

1080P AHD To HDMI Converter
Our 1080P AHD to HDMI Converter is designed to convert one channel AHD video source to HDMI displays simultaneously
- Support all type AHD resolution：1080p25/30,720P,960H
- HDMI resolution : 480, 576 ,720p, 1080i, 1080P 25/30/50/60
- AHD compatible to PAL / NTSC
- LED indicator show work status
| Model | AHD to HDMI converter |
| Input Interface | 1x BNC AHD |
| Input Signal Type |
AHD |
| Support Input Format | 1080p 25/30 ,720P25/30 , 960H |
| Video Signal Range | 0.8V p-p |
| Video Impedance | 75 ohms |
| Max. Input Coax Length | 500meter for 720p |
| HDMI/DVI Output | 1x HDMI , AHD Loop out |
| HDMI format | 480 ,576 ,720P ,1080I ,1080P 25/30/50/60 SW button to force output resolution |
| AHD format | PAL and NTSC , 720P25/30 , 960H |
| Power Supply | DC12V,1A |
| Power Consumption | 4-5Watts |
| Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F |
| Storage Temperature | -30°C ~ 70°C / -22°F ~158°F |
| Relative Humidity | 20~90% RH (Non-condensation) |
| Dimension | 160*110*26mm |
