- NO.: SE-WL050wifi
- Standards: CE,FCC
- Brand: No brand
- Views:
WirelessHD 50M compressed HDMI wireless transmission
Our wirelessHD HDMI wireless transmission enable wireless transmission of compressed video audio from any HDMI video source such as PC HDTV to display devices includes HDTV,HD monitor Over the 5Ghz band with 100MS latency
- Apply WirelessHD technology

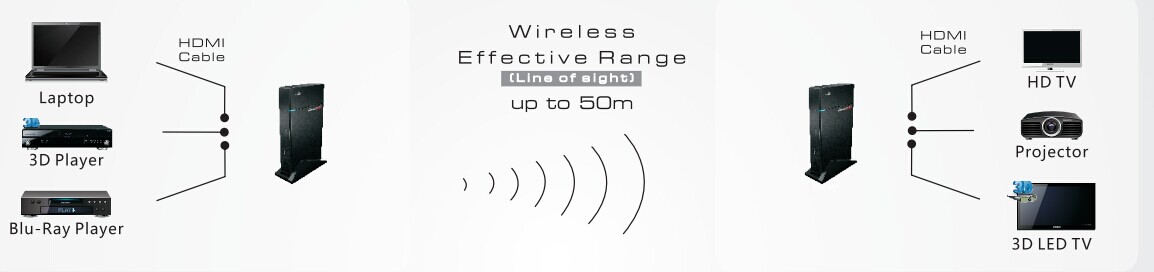

- Support HDMI single wireless transmission upto 50meter
- Support P2P and Multipoint to point mode
- Support Full HD resolution like 1080p60hz
- Support Blue-ray DVD,Media player, IPTV, Notebook PC, Desk PC, PS3 game machine ect with HDMI output interface device.
- Support RX end’s USB remote control and operation
- Support 38khz IR control signal sensor and output
- Compliance to EDID 1.1 and HDMI1.3 , HDMI1.4 3D (custom ),
- Low Latency :60MS
- Apply plug and play design to easily install and use
| Item | WL050wifi 50M WirelessHD wireless transmitter and receiver |
| Available Frequency | 5Ghz |
| Transmission Power | 12dbm |
| Receiving Sensitivity | <- 70dBm |
| Antenna | 2x2,3dBm Built-in Antenna |
| Bandwidth | 40mHZ |
| Modulation Mode | OFDM16QAM (Forward channel ) OOK (Postback channel ) |
| Data rate | Forward channel :3Gbps |
| Network Mode | P2P, P2 multipoint |
| Video Format | 480p,576p,720p, 1080i ,1080p PC :VGA (640X480),SVGA (800X600), XGA(1024X768),UGA (1600X1200) |
| S/NR | >23db@(-60 |
| Audio Format | PCM, ACC, Dolby digital 2.0 |
| Wireless Transmission Distance | 50M |
| HDMI standard | HDMI1.3, HDCP2.0 |
| LED Indicator | Network or video |

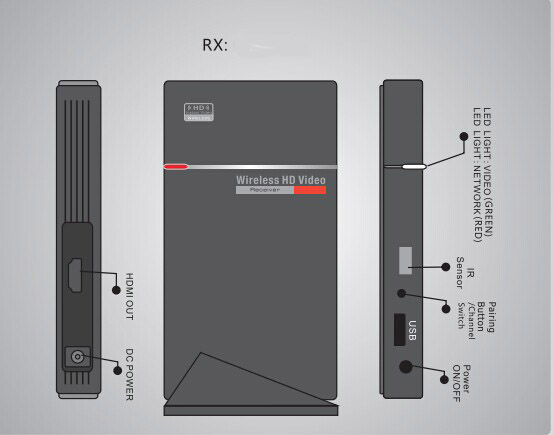

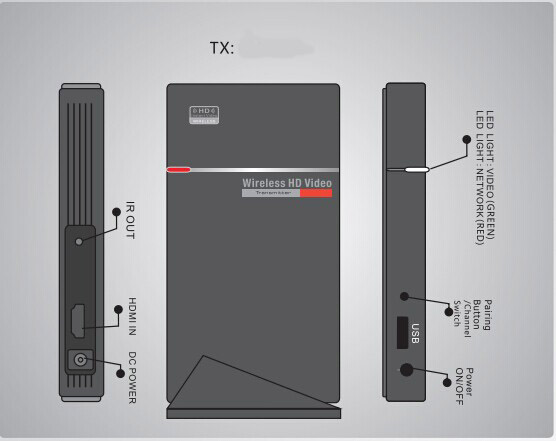

| Input and output Interface | HDMI in/out socket IR in / output USB in/out DC in WPS pairing button LED indicators |
| Power Supply | DC5V,2A |
| Size | TX: 148x90x23.5mm RX: 148x90x23.5mm |
| Work temperature | 0-80 |
| Storage temperature | -20-40 |
