- NO.: SE-WL600
- Standards: CE,FCC
- Brand: Netural
- Views:

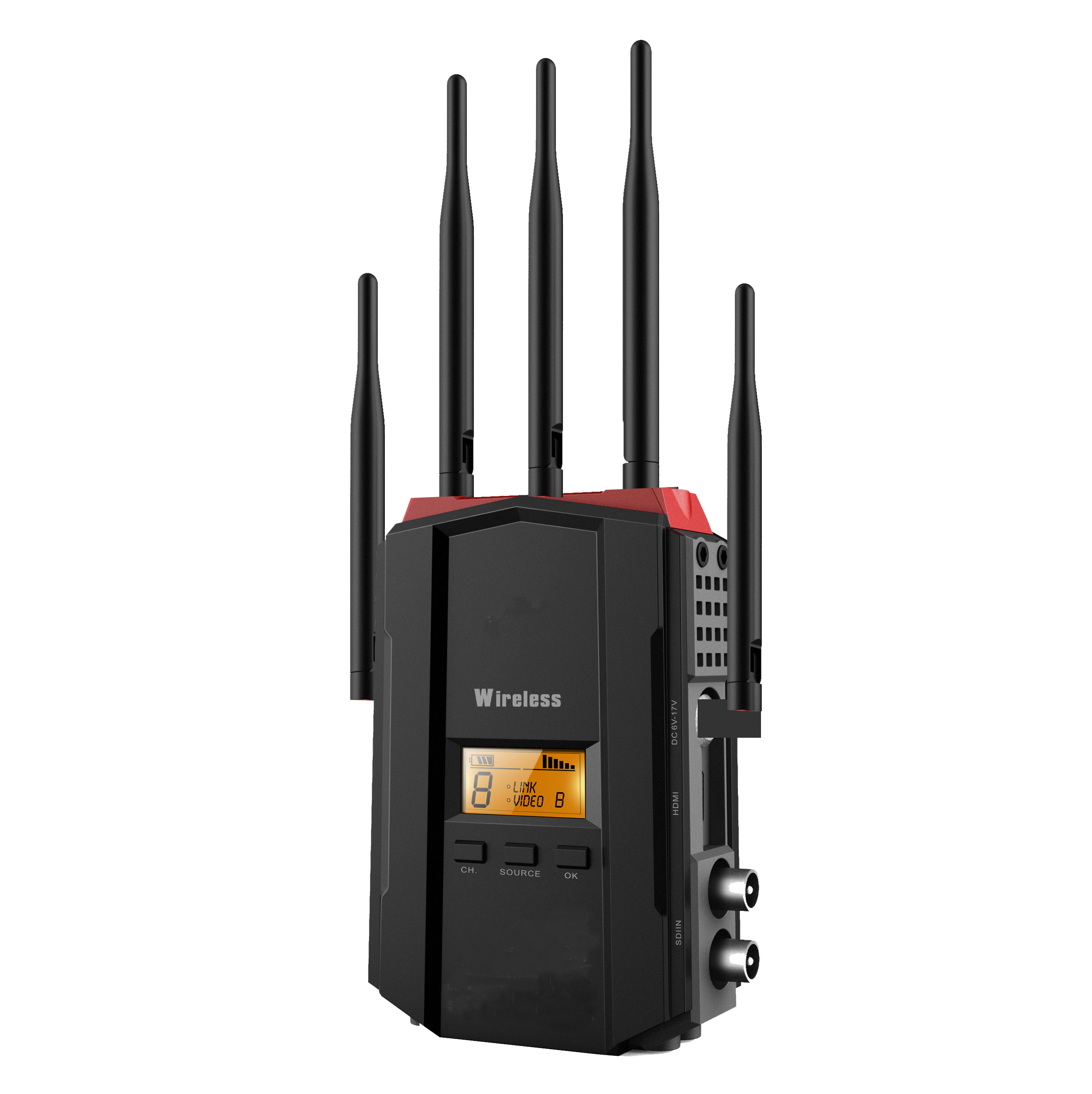

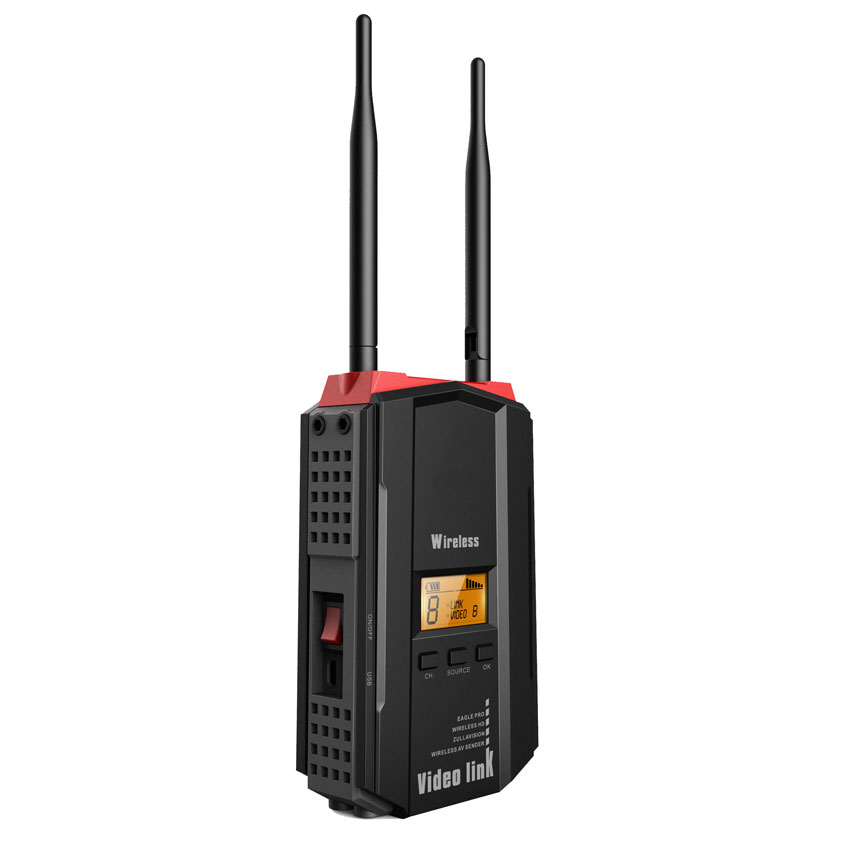

600M WHDI HDMI transmission
Our 600M WHDI wireless transmission enable wireless transmission of video audio from any HDMI video source such as PC HDTV to display devices includes HDTV,HD monitor Over the 5Ghz band with very low latency
- Apply real-time ,uncompressed wireless high definition transmission technology Called WHDI
- Support HDMI single wireless transmission upto 600meter
- Support P2P and point to Multipoint mode
- Support Full HD resolution like 1080p60hz
- Support Blue-ray DVD,Media player, IPTV, Notebook PC, Desk PC, PS3 game machine ect with HDMI output interface device.
- Support LCD display of available Frequency, Power status and orange-red backlighting to ensure good views outside door.
- Support 38khz IR control signal output and audio input
- Compliance to EDID 1.1 and HDMI1.3 , HDMI1.4 3D (custom ),WHDI1.0 standard
- Support AES128/256 image encryption technology
- Apply plug and play design to easily install and use
- Support DC power supply or offer lithium battery powered like Cannon LP-E6+
- Support two flexible fixing ways: Hot-shoe and 1/4inch screw mounting .

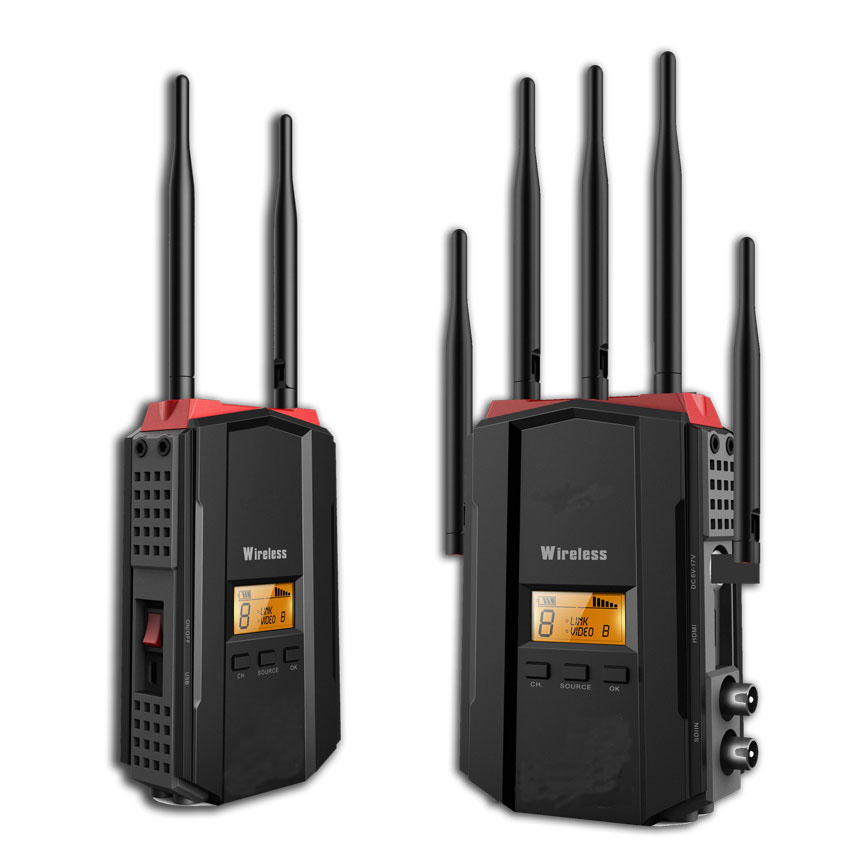

| Item | 600M WHDI wireless transmitter and receiver |
| Available Frequency | 5.1-5.9 Ghz |
| Video communication standard | Mimo |
| Transmission Power | 14-15dbm |
| Receiving Sensitivity | <- 70dBm |
| Antenna | 2x1 ,3dBm Antenna (TX) / Built-in antenna (RX) |
| Bandwidth | 40mHZ |
| Modulation Mode | OFDM16QAM (Forward channel ) OOK (Postback channel ) |
| Data rate | Forward channel :3Gbps |
| Network Mode | P2P, P2 multipoint |
| Video Format | 480p,576p,720p, 1080i ,1080p |
| S/NR | >23db@(-60<Rx Pin<45)dBm |
| Audio Format | PCM, ACC, Dolby digital 2.0/5.1 , DTS5.1 ,LPCM5.1/7.1 |
| Wireless Transmission Distance | 600M |
| System Delay | <1ms |
| HDMI standard | HDMI1.3, HDCP1.2 |
| LED Indicator | Network or video |

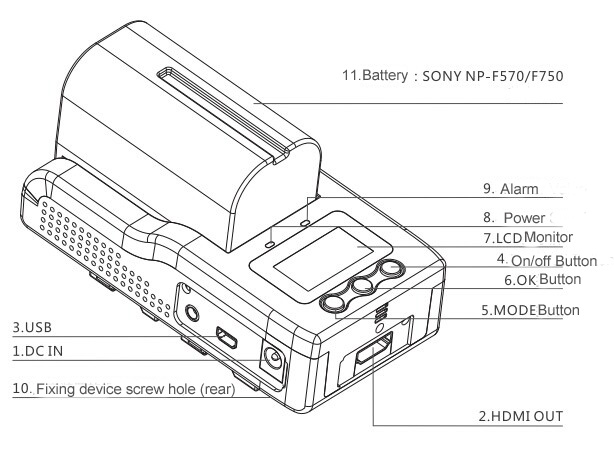

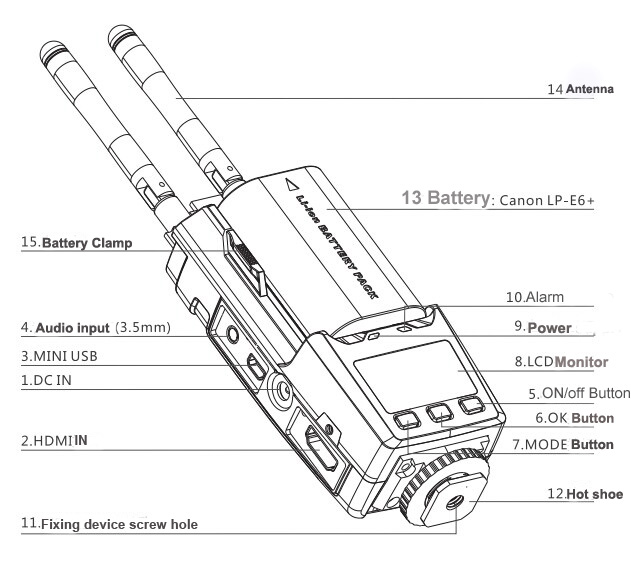

| Input and output Interface | HDMI in/out socket USB in/out Audio in DC in LED indicators :Power ,Alarm LCD Monitor :MODE ,OK ,Power on/off button |
| Power Supply | DC12V,1A Or Battery : Cannon LP-E6+ (TX ) Sony NP-F570 (Rx)—2h |
| Size | TX: 118x5443mm RX: 118x60x45mm |
| Work temperature | 0-80 |
| Storage temperature | -20-40 |
