HDMI Matrix
HDMI 04042
PREV
NEXT

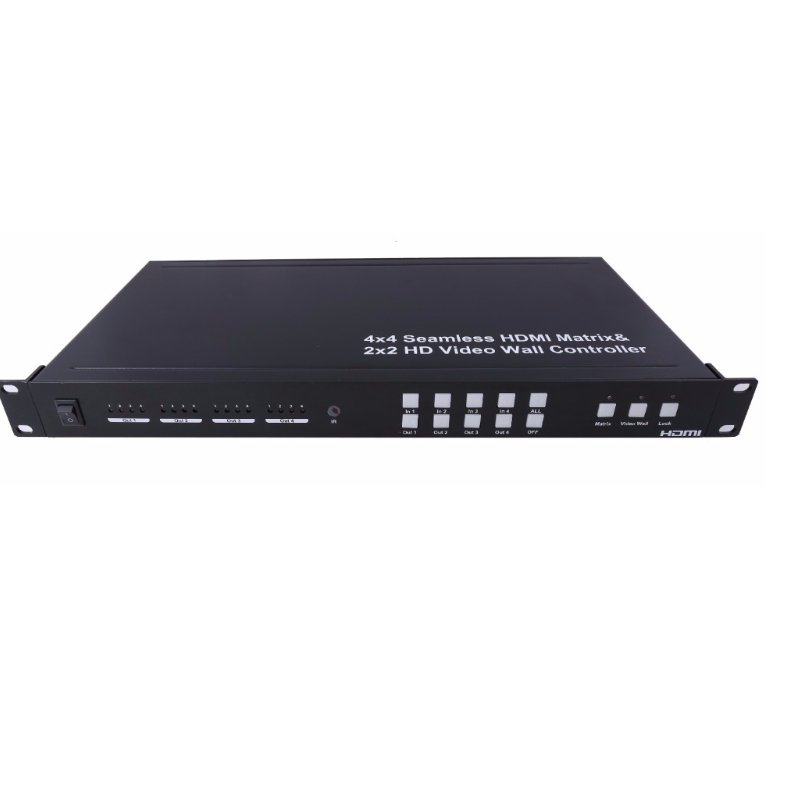

    4x4 HDMI seamless HDMI Switch Matrix with 2x2 Video wall

  • NO.: SE-HDMI0404
  • Standards: CE.FCC. RoHS
  • Brand: Netural
  • Views:

Our 4x4 HDMI seamless switch Matrix is designed to any input to any output and with 2x2 video wall function Low latency switch and no loss signal switch That is economical and high performance integration device

  • Any one of the 4 video source to anyone display
  • Seamless switch ensure no switch delay and pictures loss during transition
  • The switch speed is less than 1 second
  • Support 2x2 video wall mode
  • Any one of 4 output can be turn off independently
  • Each port support both HDMI and DVI input
  • Support high definition resolution :720p ,1080i, 1080p50/60@36B/pixels and other standard vide
  • formats

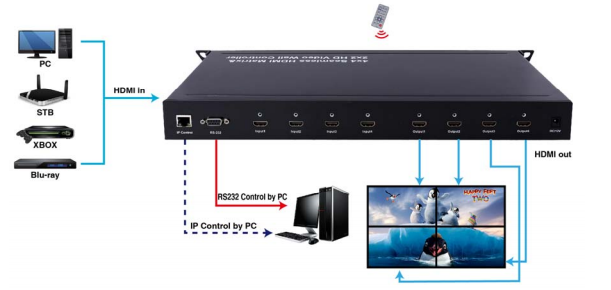

  • With panel button , remote control RS232 control , IP control to select the source
  • lU rack design, easy installment
Item  4x 4 HDMI Seamless Switch Matrix with 2x2video wall

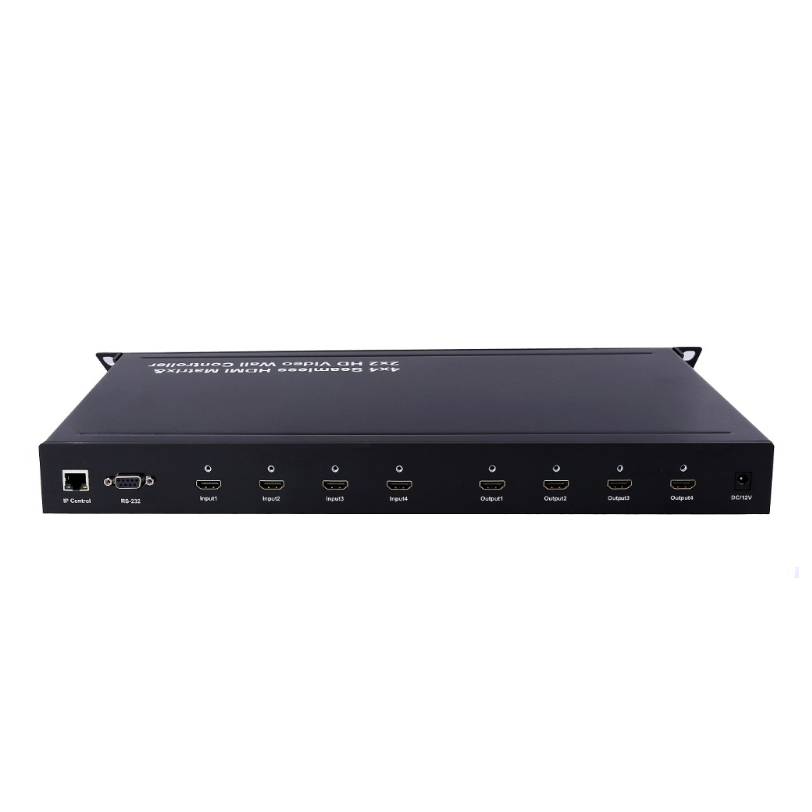

Input interface  4X HDMI ,1DC, 1X RS-232.1X RJ-45
Output  4X HDMI
Video format  DTV/HDTV: 480, 576, 720P, 1080I, 1080P
Video interface  HDMI 1.3 Type 1A
Power supply DC12,1A
Work temperature 0-35 Degree
Humidity 5-90%RH (No-condensation)
Size  438x 22x 44mm
Weight 2800g
