- NO.: SE-AHD9001
- Standards: CE ,FCC
- Brand: Netrual
- Views:

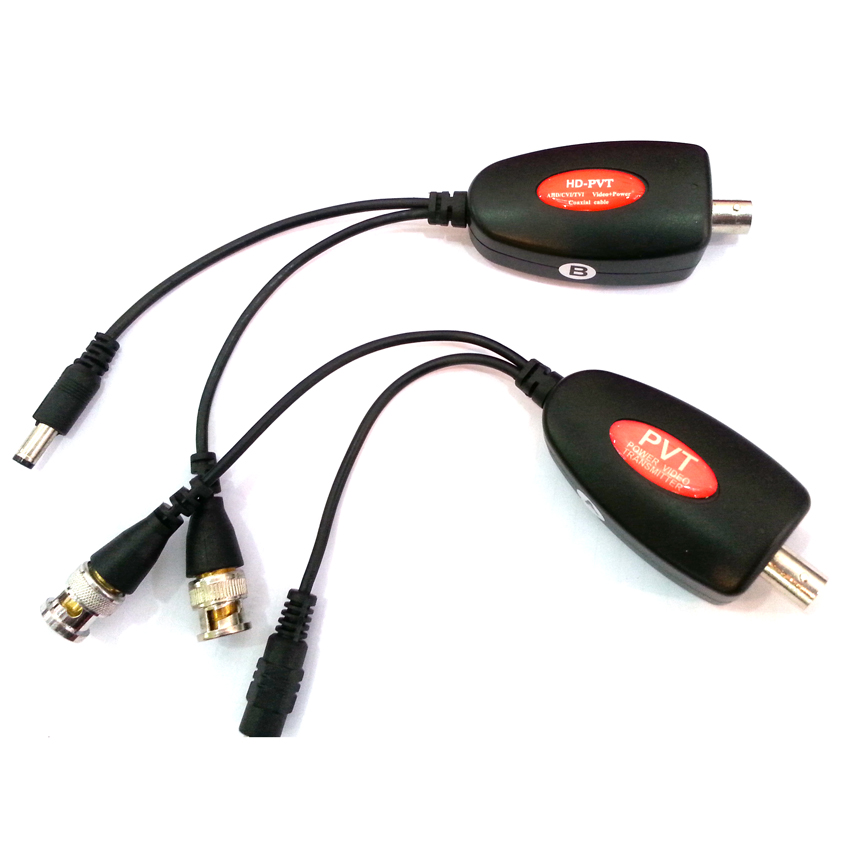

AHD&CVI/TVI +Power coax extender

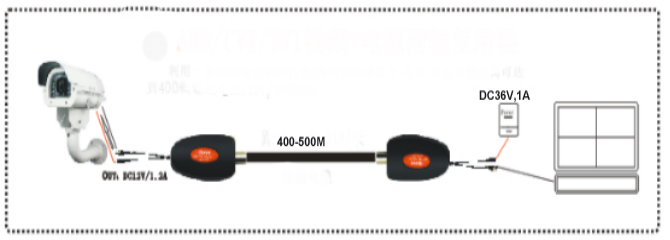

Our AHD &analog video and Power coax Extender is designed to extend 1080p AHD &analog video and the power extra long distance via one coax cable upto 350meter and output electric current upto 1000ma Apply advance digital compressing technology and wide voltage input ,multi-class eletric filter (DC 24V-36V input ),recommend DC36V,1A input
Feature :
1. Compatible to AHD and analog video
2. Support 1080p AHD and D1
3. Support NTSC and PAL auto-learning
4. Extender video signal and power upto 350meter
5. Feed the power to front device like Camera DC12V,1A
1. Compatible to AHD and analog video
2. Support 1080p AHD and D1
3. Support NTSC and PAL auto-learning
4. Extender video signal and power upto 350meter
5. Feed the power to front device like Camera DC12V,1A
| Model | AHD &Analog and Power coax extender |
| Video | |
| Interface | 75ohm, BNC |
| Signal mode | PAL/NTSC/SECAM |
| Resolution | 1080P25/30, 720P,D1 |
| Bandwidth | 5Hz-40Mhz |
| Video level | 1Vp-p |
| Differential Phase | 2 |
| Differential gain | 2% |
| SNR | 63db |
| Power | |
| Input | DC24V-36V,1A |
| Output | DC12V,1A |
| Work temperature | -10°C ~ 60°C |
| Storage temperature | -20°C ~ 70°C |
| Size |
