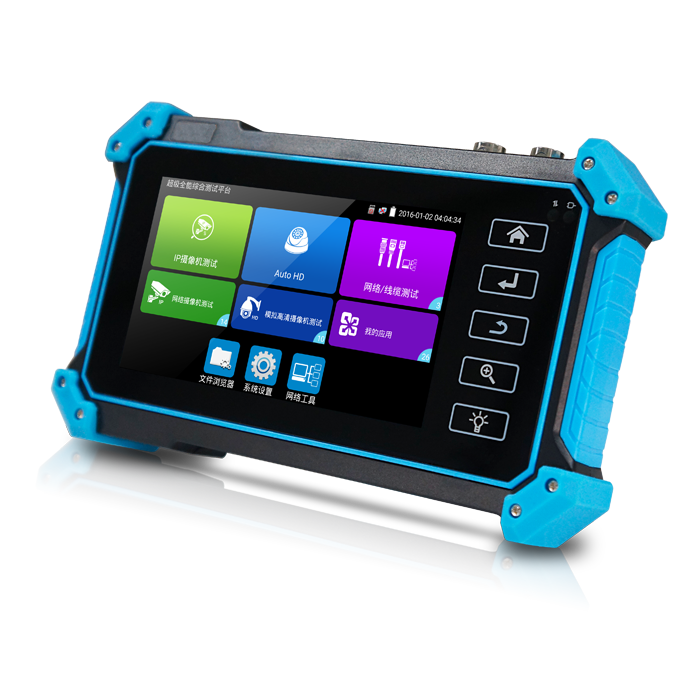

    5 inch All in one VGA & 4K HDMI input IP Camera Tester

  • NO.: SE-CT51
  • Standards: CE. FCC, ROHS
  • Brand: No logo
  • Views:

Newest 5 inch All in one VGA & 4K HDMI input IP Camera Tester

● 5 inch IPS touch screen, 1920x1080 resolution

● 8MP CVI/ TVI/ AHD camera test

● 8MP EX-SDI, HD-SDI, 3G-SDI camera test* (*optiional function)

● H.265/H.264, 4K video display via mainstream

● VGA input, support 2048 x 1152 60FPS*

● HDMI input, support 4K 30FPS*

● DC12V 3A, 48V PoE power output

● Auto HD, auto recognize HD coax camera type and resolution

● RJ45 TDR cable test, cable quality test

● UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug



HDMI.png VGA.png 1515744462175569.png 1517366528733261.png 1515988077713036.png





LCD

Item series

  HDMI and VGA And IP and coaxial Camera tester

Display

New 5 inch IPS touch screen, 1920x1080 resolution

Video Mode

 CVBS

1 channel BNC input, NTSC/PAL (Auto adapt)

PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

   IP camera test

  4K/H.265/H.264

IP Discovery/Quick ONVIF/IPC test /RTSP play / Client APK

Rapid Video

Auto view the video, create testing report

HIKVISION test tool

Support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly   change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.

DAHUA test tool

Support batch activate DAHUA cameras and modify IP address, username and password. Self-defined modify channel name.

HD Coaxial test *

8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu

8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu

8MP AHD test, 3840 x 2160P 15FPS, UTC control / call OSD menu

8MP EX-SDI, HD-SDI, 3G-SDI, UTC control / call OSD menu *

Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu

HDMI input*

1 channel HDMI input, support 4K 30FPS. The resolution as follow:4K_3840 x  2160/2K_2560 x 1440P/

1920×1080P /1920×1080i /720×480P /720×576P /1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc

 VGA input*

1 channel VGA input, support 2048 x 1152 60FPS. The   resolution as follow: 2048 x 1152P/ 1920 x 1200P 60FPS/1920×1080P 60FPS /1792×1344P 60FPS /1680x 1050P 60FPS/(1600x1200P/900P 60FPS)/1440x900P 60FPS/1360x768P 60FPS/(1280x1024/960/800/768/720P 60FPS)/1152x870P 60FPS/1024x768P 60FPS/800x600P 60FPS/600x480P 60FPS

    Zoom Image

4x zoom, to enlarge image, screen snapshot, record, save, view and record and play back

Power output

     12V/3A power

Output DC12V/3A power out, supply temporarily power for the camera

PoE power output

48V PoE power output, max power 25.5W

Cable  test

Digital Cable tracer *

Search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time *

UTP cable test

Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

RJ45 TDR cable test

Test cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M

TesterPlay

Screen projection: Tester, mobile phone and PC display at the same time (For android version mobile   phone)

Network  test

Trace route, Link monitor, DHCP server, port flashing, Ping test

Wi-Fi

Built in WIFI, speeds 150M, display wireless camera image

Audio test

1 channel audio signal input, test whether sound normal

Power management

Display DC 12V input & output voltage and power in real time

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

External power supply

DC12V 1A

Battery

Built-in Lithium ion battery

Rechargeable

After charging 3-4 hours, normal working time 6 hours

Operation setting

OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc

Auto off

1-30 (mins)

Working Temperature

-10---+50

Working Humidity

30%-90%

Dimension/Weight

183mm x 110mm x 36.5mm / 0.4kg
