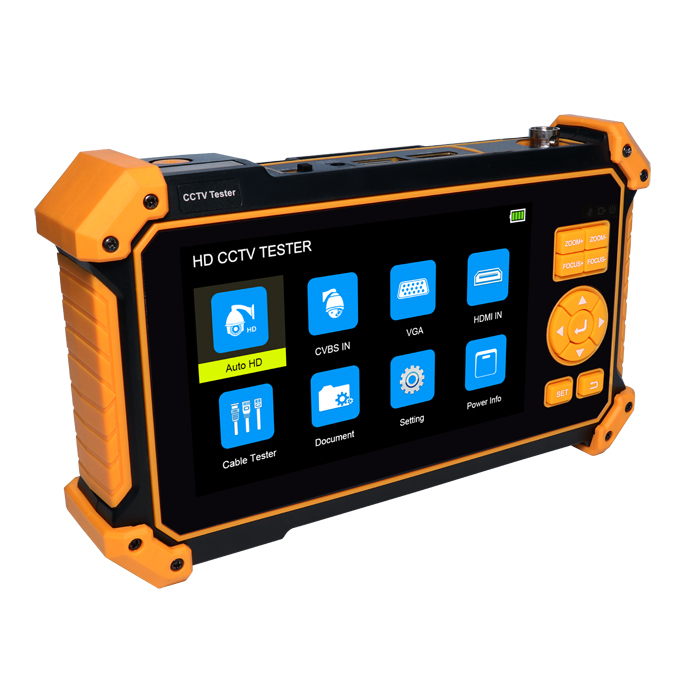

    5" AHD CVI TVI and VGA & 4K HDMI and EX-SDI CVBS Camera Tester

  • NO.: SE-CT31 Series
  • Brand: No logo
  • Views:

5 " AHD CVI TVI EX-SDI CVBS Camera Tester VGA & 4K HDMI input

● 5 inch TFT-LCD screen, 800*480 resolution

● 8MP CVI/ TVI/ AHD camera test

● 8MP EX-SDI, HD-SDI, 3G-SDI test*

● VGA input, support 1920 x 1200P 60FPS

● HDMI Input, support 4K 30FPS

● Analog camera test, PAL/NTSC auto adapt

● Auto HD, auto recognize HD coax camera type and resolution

● DC12V 1A power output

● DC 5V 1A power output, support reading USB disk

● UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug



 image.png image.png 1582530265883055.png 1582530360136630.png1582530360136630.png

LCD

Item series

  5" AHD CVI TVI and VGA & 4K HDMI and EX-SDI CVBS Camera Tester

Display

New 5 inch TFT-LCD screen, 800*480 resolution

Video Mode

CVBS

1 channel BNC input, NTSC/PAL (Auto adapt)

PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

HD Coaxial test

8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu

8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu

8MP AHD test, 3840 x 2160P 15FPS, UTC control / call OSD menu

8MP EX-SDI, HD-SDI,  3G-SDI, UTC control / call OSD menu *

Auto HD app, auto recognize HD coax camera type and resolution, support coaxial PTZ & call  OSD menu

HDMI input

1 channel HDMI input, support 4K 30FPS. The resolution as follow:4K_3840 x 2160/2K_2560 x 1440P/

1920×1080P /1920×1080i /720×480P /720×576P   /1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc

VGA input

1 channel VGA input,   support 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/

1920×1080P 60FPS /1792×1344P 60FPS /1680x 1050P   60FPS/(1600x1200P/900P 60FPS)/1440x900P 60FPS/1360x768P   60FPS/(1280x1024/960/800/768/720P 60FPS)/1152x870P 60FPS/1024x768P  60FPS/800x600P 60FPS/600x480P 60FPS

Power output

DC12V 1A output

DC12V 1A power output, supply temporarily power for the camera

DC5V 1A output

DC5V 1A power output, support reading USB disk

Cable test

Digital Cable tracer *

Search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time *

UTP cable test

Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end  and far-end fault point of the network cable crystal head.

Audio test

1 channel audio signal input, test whether sound normal.

Power management

Display DC 12V input & output voltage and power in real time

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

External power supply

DC 5V 2A

Battery

Built-in 3.7V Lithium polymer battery, 5200mAh

Rechargeable

After charging 4 hours, normal working time 6.5 hours

Operation setting

OSD menu, select your desired language:  English, Chinese, Korean, Russian, Italian, French, Polish, Spanish,   Japanese, Deutsch, Turkish, Portuguese, Czech etc

Auto off

1-30 (mins)

Working Temperature

-10℃---+50℃

Working Humidity

30%-90%

Dimension/ Weight

184mm x 110mm x 41mm / 0.4kg



Note: “*” sign mean functions are customizable

The data above is only for reference and any change of them will not be informed in advance. For more detailed technical inquiries, please feel free to contact us
